Toyota Camry (XV70): Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during door control and tire pressure warning ECU and receiver or electrical key and tire pressure warning ECU and receiver removal/installation are shown below.

Replacement Part or Procedure

Necessary Procedures

Effects/Inoperative when not Performed

Link

*1: w/ Smart Key System

*2: w/o Smart Key System

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane tracing assist system

Pre-collision system

Memorize steering angle neutral point

Parking assist monitor system

Panoramic view monitor system

  • Tire pressure warning ECU and receiver (electrical key and tire pressure monitoring system receiver assembly*1, door control and tire pressure monitoring system receiver assembly*2)
  • Tire pressure warning valve and transmitter
  • Register Transmitter ID
  • Initialize tire pressure warning system
  • When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates.
  • Tire pressure warning function

for Registration

for Initialization

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

NOTICE:

When replacing the door control and tire pressure warning ECU and receiver or electrical key and tire pressure warning ECU and receiver, read the transmitter IDs stored in the old ECU using the Techstream and write them down before removal.

Click here

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

for A25A-FKS: Click here

for 2GR-FKS: Click here

CAUTION:

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
  • If an airbag deploys for any reason, it may cause a serious injury.

3. REMOVE REAR SEAT ASSEMBLY (for Fixed Seat Type)

Click here

4. REMOVE REAR SEAT CUSHION ASSEMBLY (for Fold Down Seat Type)

Click here

5. REMOVE REAR SEAT CUSHION LOCK HOOK (for Fold Down Seat Type)

Click here

6. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

HINT:

Use the same procedure as for the LH side.

Click here

7. REMOVE REAR SIDE SEATBACK ASSEMBLY RH (for Fold Down Seat Type)

HINT:

Use the same procedure as for the LH side.

Click here

8. REMOVE INNER ROOF SIDE GARNISH RH

HINT:

Use the same procedure as for the LH side.

Click here

9. REMOVE TIRE PRESSURE WARNING ECU AND RECEIVER

NOTICE:

  • Do not drop, strike or otherwise subject the tire pressure warning ECU and receiver to impact.
  • If the tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.

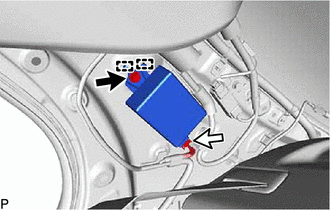

(a) Remove the bolt.

(b) Disengage the 2 guides.

(c) Disconnect the connector to remove the tire pressure warning ECU and receiver.
