Toyota Camry (XV70): System Diagram
Toyota Camry Repair Manual XV70 (2018-2024) / Power Source, Network / Networking / Lin Communication System / System Diagram
SYSTEM DIAGRAM

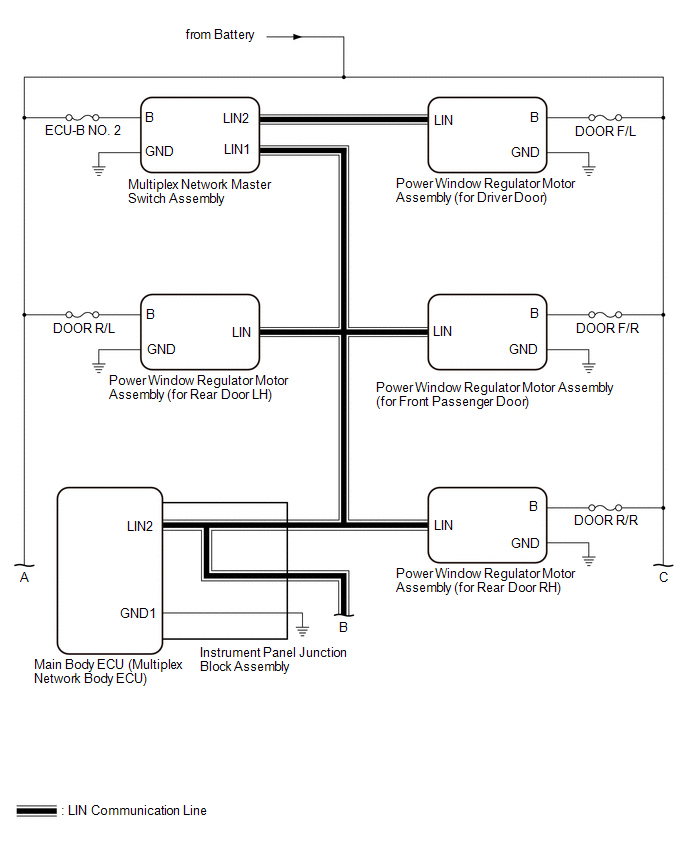

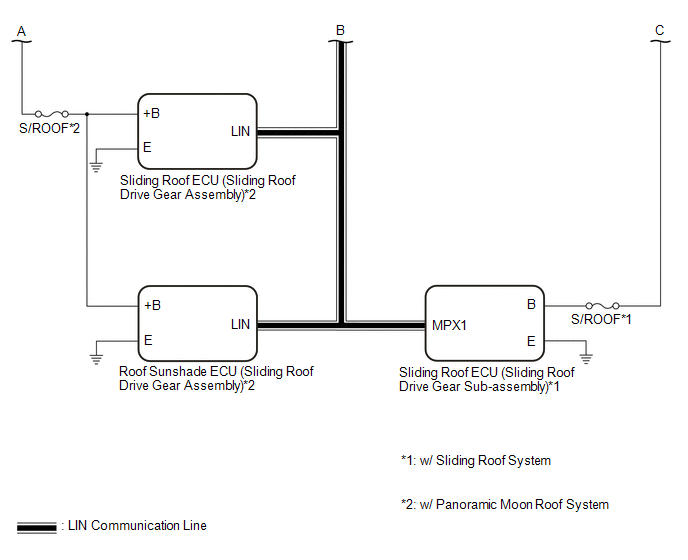

DOOR BUS LINES

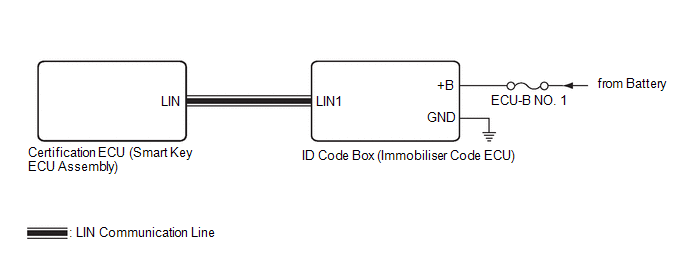

CERTIFICATION BUS LINES (w/ Smart Key System)
READ NEXT:
System Description
SYSTEM DESCRIPTION LIN COMMUNICATION SYSTEM DESCRIPTION
The LIN communication system is used for communication between the components in the tables below. If communication cannot be performed throug
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT
HINT:
Use the following procedure to troubleshoot the LIN communication system.
*: Use the Techstream.
PROCEDURE
1. VEHICLE BROUGHT TO WORKSHOP
Terminals Of Ecu
TERMINALS OF ECU CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
(a) Disconnect the MB main body ECU (multiplex network body ECU) connector.
Click he
