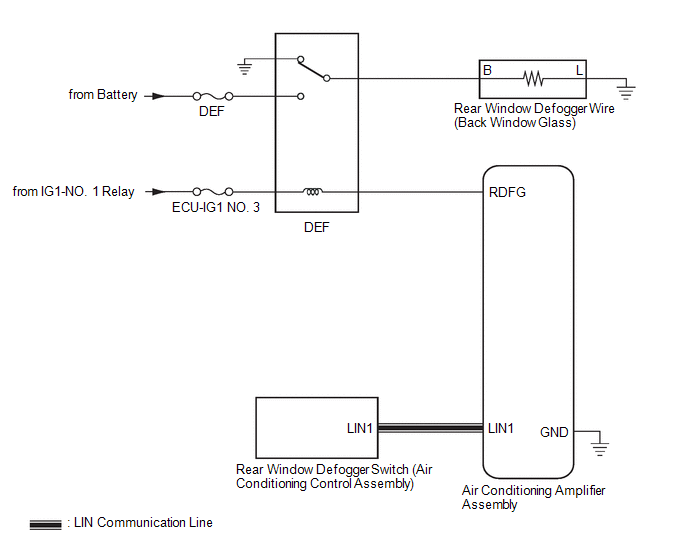

SYSTEM DIAGRAM
Communication Table |
Transmitter | Receiver |
Signal | Communication Method |
|---|---|---|---|
|
Rear Window Defogger Switch (Air Conditioning Control Assembly) |
Air Conditioning Amplifier Assembly |
Rear Window Defogger Switch Signal |
LIN |
