DESCRIPTION
The main body ECU (multiplex network body ECU) detects a high beam headlight illumination request signal of the automatic high beam system from the forward recognition camera.
|
DTC No. | Detection Item |
DTC Detection Condition |
Trouble Area | DTC Output from |
|---|---|---|---|---|
|
B124C | Automatic High Beam Camera |
Malfunction in forward recognition camera |
Front camera system |
Main Body |

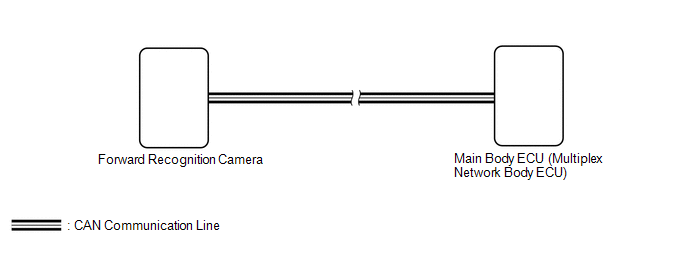

WIRING DIAGRAM
PROCEDURE
|
1. | CHECK FRONT CAMERA SYSTEM |
(a) Check front camera system.
Click here
.gif)
| NEXT | .gif) |
END |
