Toyota Camry (XV70): Automatic High Beam System (B124B)
DESCRIPTION
The main body ECU (multiplex network body ECU) determines the status of the automatic high beam system based on the automatic high beam system signal from the forward recognition camera.
|
DTC No. | Detection Item |
DTC Detection Condition |
Trouble Area | DTC Output from |
|---|---|---|---|---|
|
B124B | Automatic High Beam System |
Malfunction in automatic high beam system |
| Main Body |
- *: w/ Road Sign Assist System

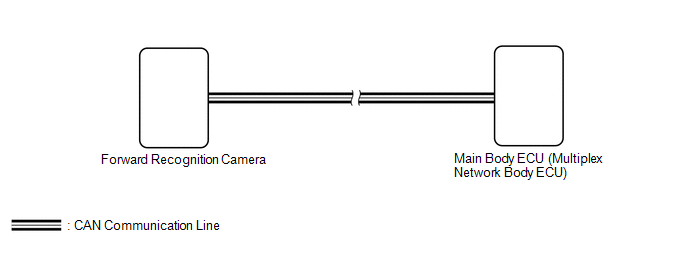

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
- The lighting system uses the CAN communication system. Inspect the communication functions by following How to Proceed with Troubleshooting. Troubleshoot the automatic high beam system after confirming that the communication systems are functioning properly.
Click here
.gif)
- Before replacing the main body ECU (multiplex network body ECU), refer to Registration.*
Click here
- *: w/ Smart Key System
HINT:
If the forward recognition camera stores a DTC for a malfunction of any of the following, this DTC will be stored simultaneously.- Speed sensor
- Yaw rate sensor
- Millimeter wave radar sensor
- CAN communication system
PROCEDURE
|
1. | CHECK FOR DTC (HEALTH CHECK) |
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: System Select / Health Check.
(e) Check for DTCs.
|
Result | Proceed to |
|---|---|
|
Only DTC B124B is output |
A |
| DTC B124B and other DTCs are output |
B |
| B | .gif) |
GO TO OTHER DTC CHART |
|
.gif)
|
2. | CHECK FRONT CAMERA SYSTEM |
(a) Check if a dynamic radar cruise control system, lane tracing assist system, road sign assist system*, front radar sensor system or pre-collision system warning message is displayed on the multi-information display.
Click here
OK:
No dynamic radar cruise control system, lane tracing assist system, road sign assist system*, front radar sensor system or pre-collision system warning messages are displayed.
- *: w/ Road Sign Assist System
| OK | |
REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| NG | |
GO TO FRONT CAMERA SYSTEM |
