Toyota Camry (XV70): Brake Warning Light Remains ON

DESCRIPTION

This procedure is for troubleshooting when the brake system warning light (red indicator) remains on but no DTCs are output.

The skid control ECU (brake actuator assembly) controls the brake system warning light (red indicator) in the combination meter assembly via CAN communication.

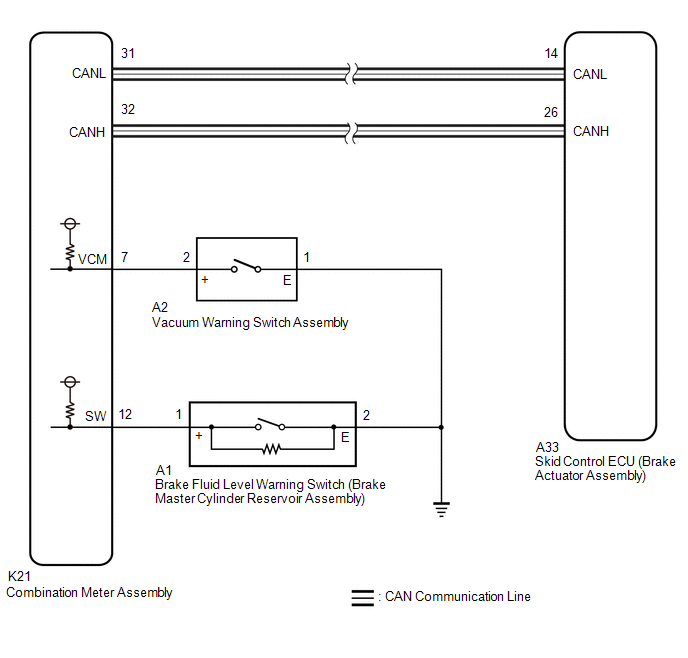

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and system information memorization.

    Click here

  • Before performing this procedure, depress the brake pedal and confirm that the stop lights illuminate.

PROCEDURE

1.

PRE-CHECK

(a) Check that all of the following conditions required for the brake system warning light (red indicator) to turn off are met:

(1) The ABS warning light are not illuminated.

HINT:

If the ABS warning light remains illuminated, make sure that the conditions required for the ABS warning light to turn off are met.

Click here

(2) The brake fluid level in the brake master cylinder reservoir assembly is not low.

(3) Ensure that the brake booster has sufficient vacuum.

HINT:

When the vacuum inside the brake booster decreases, the brake system warning light (red indicator) comes on.

NEXT

2.

CHECK VEHICLE CONTROL HISTORY (RoB) (VEHICLE STABILITY CONTROL SYSTEM)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake / Utility / Vehicle Control History (RoB).

(d) Using the Techstream, check for Vehicle Control History (RoB).

Click here

Chassis > Brake > Utility

Tester Display

Vehicle Control History (RoB)

HINT:

If vehicle control history (RoB) is stored when the vehicle stability control system is suspended, the brake system warning light (red indicator) illuminates.

Result

Proceed to

There is no vehicle control history (RoB) for when the vehicle stability control system was suspended.

A

There is vehicle control history (RoB) for when the vehicle stability control system was suspended.

B

B

PERFORM TROUBLESHOOTING AND REPAIR REGARDING VEHICLE CONTROL HISTORY (RoB)

NOTICE:

After performing troubleshooting and repair regarding vehicle control history (RoB), clear the vehicle control history (RoB).

A

3.

INSPECT BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

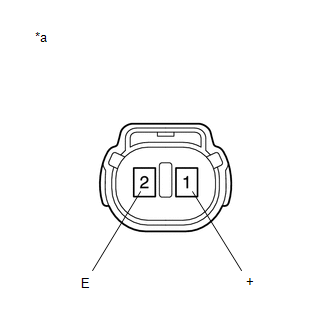

*a

Component without harness connected

(Brake Fluid Level Warning Switch (Brake Master Cylinder Reservoir Assembly))

(b) Disconnect the A1 brake fluid level warning switch (brake master cylinder reservoir assembly) connector.

(c) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(d) Measure the resistance according to the value(s) in the table below.

HINT:

A float is located inside the reservoir. Its position changes according to the brake fluid level.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (+) - 2 (E)

Switch off (float up)

1.9 to 2.1 kΩ

1 (+) - 2 (E)

Switch on (float down)

Below 1 Ω

(e) If there is no problem after finishing the above check, adjust the brake fluid level to the MAX level.

NG

REPLACE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY

OK

4.

CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

(b) Disconnect the K21 combination meter assembly connector.

(c) Disconnect the A1 brake fluid level warning switch (brake master cylinder reservoir assembly) connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K21-12 (SW) - A1-1 (+)

Always

Below 1 Ω

K21-12 (SW) or A1-1 (+) - Body ground

Always

10 kΩ or higher

A1-2 (E) - Body ground

1 minute or more after disconnecting the cable from the negative (-) battery terminal

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

5.

INSPECT VACUUM WARNING SWITCH ASSEMBLY

(a) Inspect the vacuum warning switch assembly.

Click here

OK:

The vacuum warning switch assembly is normal.

NG

REPLACE VACUUM WARNING SWITCH ASSEMBLY

OK

6.

CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - VACUUM WARNING SWITCH ASSEMBLY)

(a) Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:

The connector is securely connected.

(b) Disconnect the K21 combination meter assembly connector.

(c) Disconnect the A2 vacuum warning switch assembly connector.

(d) Check both the connector case and the terminals for deformation and corrosion.

OK:

No deformation or corrosion.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

K21-7 (VCM) - A2-2 (+)

Always

Below 1 Ω

K21-7 (VCM) or A2-2 (+) - Body ground

Always

10 kΩ or higher

A2-1 (E) - Body ground

1 minute or more after disconnecting the cable from the negative (-) battery terminal

Below 1 Ω

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

7.

INSPECT COMBINATION METER ASSEMBLY

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Body Electrical / Combination Meter / Active Test.

(d) Perform the Active Test of the combination meter assembly using the Techstream.

Click here

Body Electrical > Combination Meter > Active Test

Tester Display

Brake Warning

(e) Check the combination meter assembly.

OK:

The brake system warning light (red indicator) turns on or off in accordance with Techstream operation.

OK

REPLACE BRAKE ACTUATOR ASSEMBLY

NG

INSPECT METER / GAUGE SYSTEM
