Toyota Camry (XV70): Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL HEADLIGHT COVER (for LED Type Turn Signal Light)

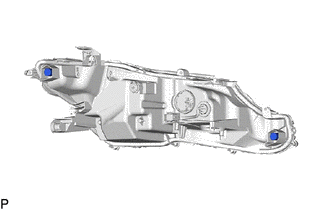

| (a) Install the 2 headlight covers. |
|
.png)
2. INSTALL HEADLIGHT BACK COVER (for LED Type Turn Signal Light)

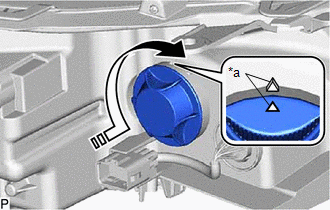

(a) Turn the headlight back cover as shown in the illustration until the lock marks are aligned to install it.
|
*a | Lock Mark |
.png) |
Install in this Direction |
3. INSTALL FRONT MARKER LIGHT SOCKET PLUG (for Bulb Type Turn Signal Light)
4. INSTALL FRONT SIDE MARKER LIGHT BULB (for Bulb Type Turn Signal Light)
(a) Install the front side marker light bulb to the front marker light socket plug.

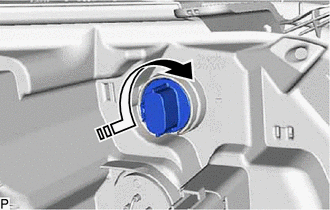

(b) Turn the front marker light socket plug with the front side marker light bulb as shown in the illustration to install them as a unit.
|
|
Install in this Direction |
5. INSTALL FRONT TURN SIGNAL LIGHT SOCKET (for Bulb Type Turn Signal Light)
6. INSTALL FRONT TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)
(a) Install the front turn signal light bulb to the front turn signal light socket.

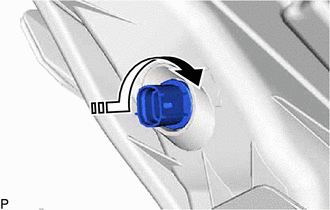

(b) Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to install them as a unit.
|
|
Install in this Direction |
