COMPONENTS

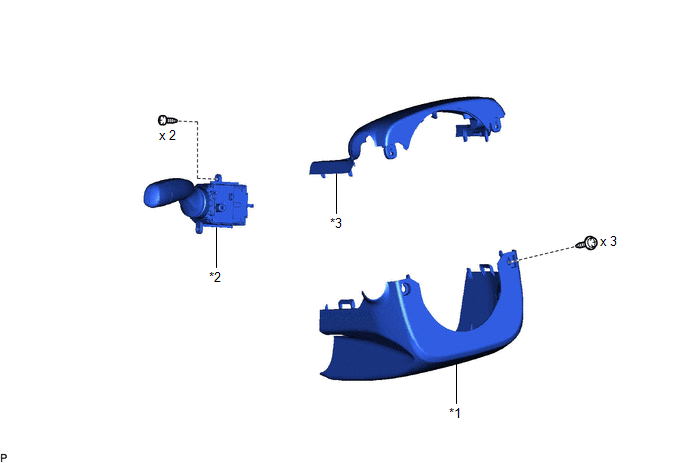

ILLUSTRATION
|
*1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY |
*2 | TURN SIGNAL SWITCH |
|
*3 | UPPER STEERING COLUMN COVER |
- | - |
