Toyota Camry (XV70): Installation
Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Lighting (ext) / Headlight Dimmer Switch / Installation
INSTALLATION
PROCEDURE
1. INSTALL TURN SIGNAL SWITCH

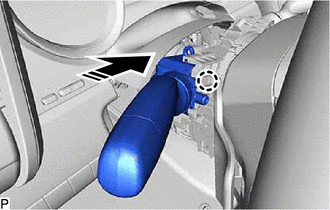

(a) Engage the claw as shown in the illustration.
.png) |
Install in this Direction |
(b) Install the turn signal switch with the 2 screws.
2. INSTALL UPPER STEERING COLUMN COVER
Click here
.gif)
3. INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY
Click here
