Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Lighting (ext) / Headlight Dimmer Switch / Removal

REMOVAL

PROCEDURE

1. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY

Click here

2. REMOVE UPPER STEERING COLUMN COVER

Click here

3. REMOVE TURN SIGNAL SWITCH

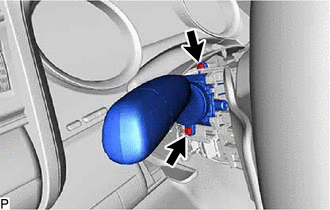

(a) Remove the 2 screws.

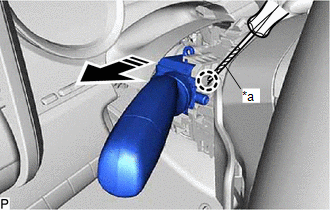

(b) Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the turn signal switch as shown in the illustration.

*a

Protective Tape

Remove in this Direction
