Toyota Camry (XV70): Cannot Switch to Automatic ID Registration Mode
DESCRIPTION
When "Change Wheel" is selected on the multi-information display and the "OK" switch (steering pad switch assembly) is pushed and held, the system enters ID registration mode and the tire pressure warning light blinks 3 times.
The main body ECU (multiplex network body ECU) receives signals from the combination meter assembly via the CAN communication line.

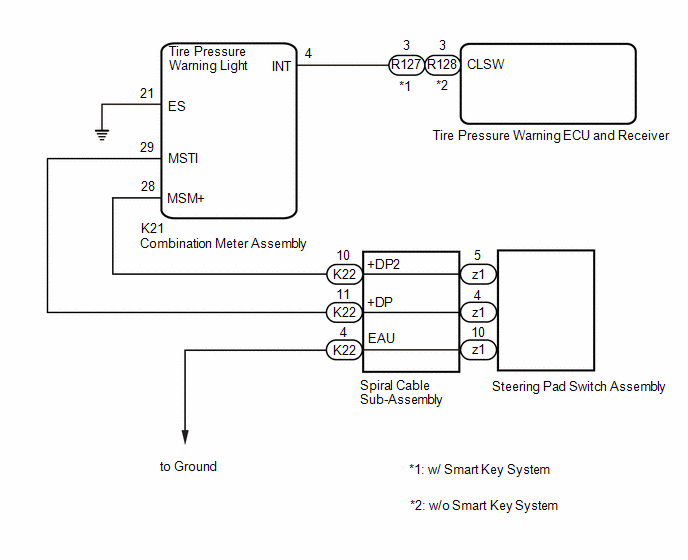

WIRING DIAGRAM
PROCEDURE
| 1. |
CHECK TEST MODE (TIRE PRESSURE WARNING RESET SWITCH CHECK [DTC C2198]) |
(a) Perform Test Mode Procedure (Tire Pressure Warning Reset Switch Check (DTC C2198)).
Click here
| NEXT |
| GO TO DTC C2198 |
