REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during tire pressure warning valve and transmitter removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Tire pressure warning valve and transmitter	Register transmitter ID Initialize tire pressure warning system	When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates. Tire pressure warning function	for Registration for Initialization

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Tire pressure warning valve and transmitter

Register transmitter ID
Initialize tire pressure warning system

When DTC detection conditions of "transmitter ID not received" DTC are met, TPWS indicator blinks for 1 minute, and then illuminates.
Tire pressure warning function

for Registration

for Initialization

PROCEDURE

1. REMOVE WHEEL ASSEMBLY

Click here

2. REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER (for Type A)

(a) Remove the tire valve cap.

NOTICE:

Keep the removed tire valve cap.

(b) Remove the valve core to release the air from the tire.

NOTICE:

Make sure that a sufficient amount of air has been released.

NOTICE:

Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.

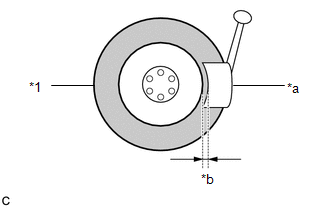

Set the tire remover shoe as shown in the illustration.

*1	Tire
*a	Shoe
*b	10 to 20 mm (0.394 to 0.787 in.)

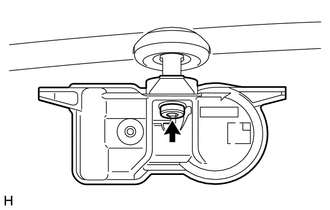

(d) Using a T10 "TORX" socket wrench, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.

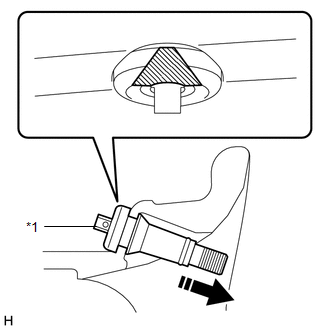

(e) Cut the tubeless tire valve and remove it by pulling from the outer side of the disc wheel as shown in the illustration.

*1	Tubeless Tire Valve
	Cutting Area

3. REMOVE TIRE PRESSURE WARNING VALVE AND TRANSMITTER (for Type B)

(a) Remove the tire valve cap.

NOTICE:

Keep the removed tire valve cap.

(b) Remove the valve core to release the air from the tire.

NOTICE:

Make sure that a sufficient amount of air has been released.

(d) Drop the tire pressure warning valve and transmitter with grommet into the tire.

HINT:

The grommet may remain attached to the rim.

(e) Using a tire remover, remove the tire from the disc wheel.

NOTICE:

Be careful not to damage the tire pressure warning valve and transmitter due to interference between the valve and the tire bead.

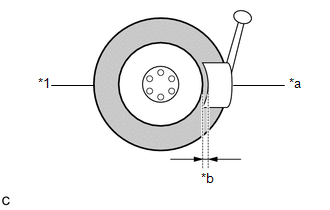

Set the tire remover shoe as shown in the illustration.

*1	Tire
*a	Shoe
*b	10 to 20 mm (0.394 to 0.787 in.)

(f) Take out the tire pressure warning valve and transmitter with grommet from the tire.

(g) Remove the grommet from the tire pressure warning valve and transmitter.

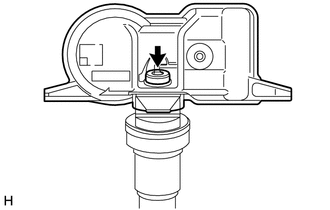

(h) Using a T10 "TORX" socket wrench, remove the bolt and tire pressure monitor sensor from the tubeless tire valve.
