Toyota Camry (XV70): Components

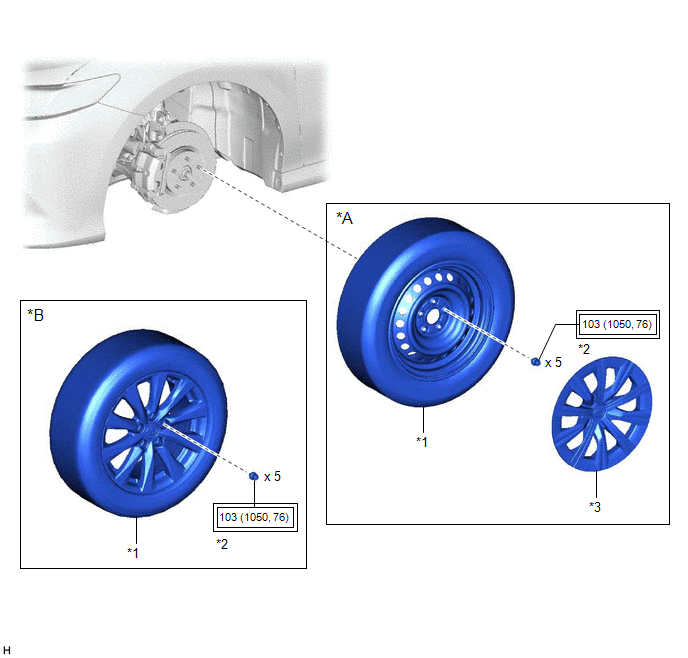

*A

for Steel Wheel

*B

except Steel Wheel

*1

WHEEL ASSEMBLY

*2

AXLE HUB NUT

*3

WHEEL CAP

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

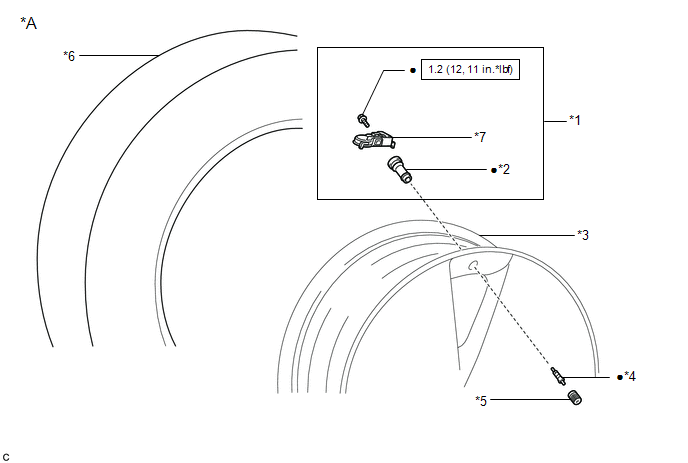

*A

for Type A

-

-

*1

TIRE PRESSURE WARNING VALVE AND TRANSMITTER

*2

TUBELESS TIRE VALVE

*3

DISC WHEEL

*4

VALVE CORE

*5

TIRE VALVE CAP

*6

TIRE

*7

TIRE PRESSURE MONITOR SENSOR

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

*A

for Type B

-

-

*1

TIRE PRESSURE WARNING VALVE AND TRANSMITTER

*2

TUBELESS TIRE VALVE

*3

DISC WHEEL

*4

VALVE CORE

*5

TIRE VALVE CAP

*6

TIRE

*7

TIRE PRESSURE MONITOR SENSOR

*8

GROMMET

*9

WASHER

*10

NUT

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
