Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / 2gr-fks (intake / Exhaust) / Exhaust Pipe / Components

COMPONENTS

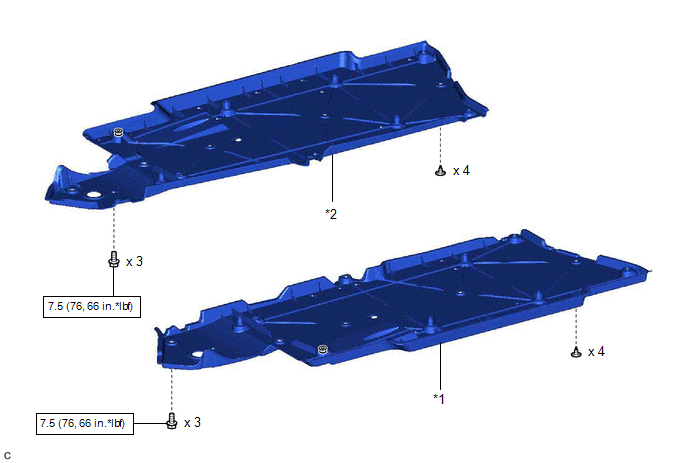

ILLUSTRATION

*1

FRONT FLOOR COVER LH

*2

FRONT FLOOR COVER RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

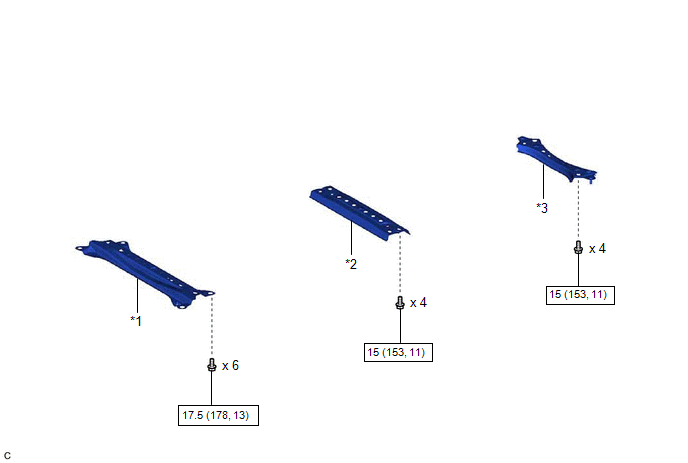

ILLUSTRATION

*1

BODY MOUNTING PLATE

*2

CENTER FLOOR CROSSMEMBER BRACE

*3

FRONT CENTER FLOOR BRACE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

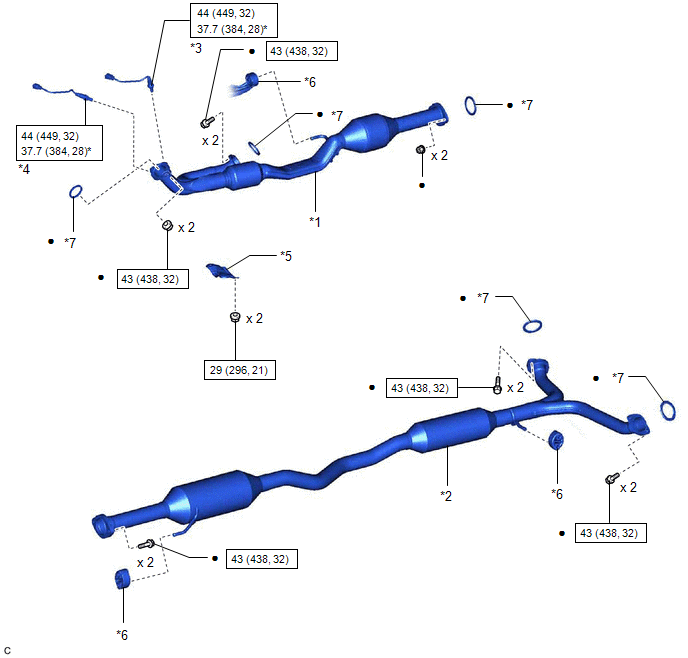

ILLUSTRATION

*1

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

*2

CENTER EXHAUST PIPE ASSEMBLY

*3

HEATED OXYGEN SENSOR (for Bank 2)

*4

HEATED OXYGEN SENSOR (for Bank 1)

*5

NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)

*6

EXHAUST PIPE SUPPORT

*7

GASKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST

●

Non-reusable part

-

-

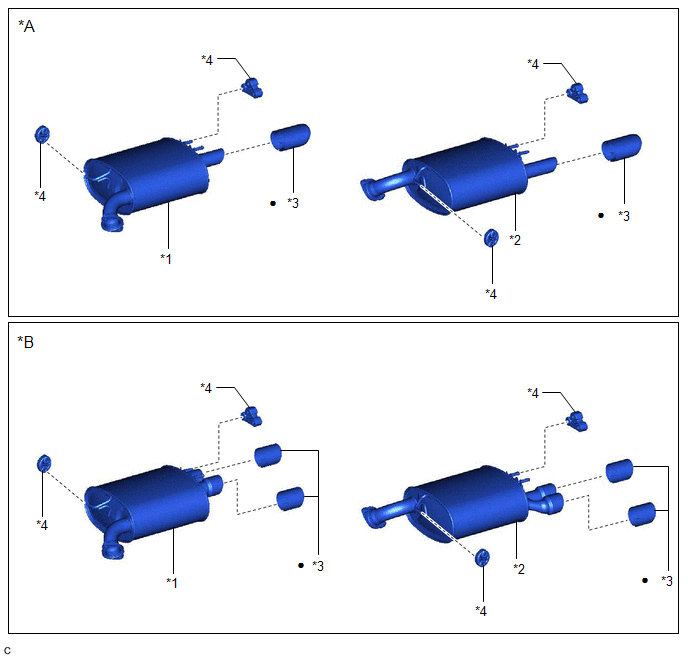

ILLUSTRATION

*A

Type A

*B

Type B

*1

TAIL EXHAUST PIPE ASSEMBLY

*2

TAIL EXHAUST PIPE ASSEMBLY LH

*3

TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY

*4

EXHAUST PIPE SUPPORT

●

Non-reusable part

-

-
