Toyota Camry (XV70): Components

COMPONENTS

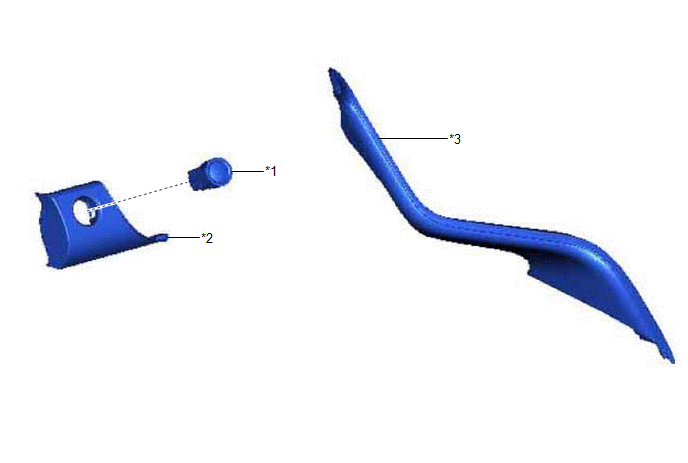

ILLUSTRATION

*1

ENGINE SWITCH

*2

LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

*3

NO. 1 METER HOOD CLUSTER

-

-

    READ NEXT:

     Removal

    REMOVAL PROCEDURE 1. REMOVE NO. 1 METER HOOD CLUSTER Click here 2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY Click here 3. REMOVE ENGINE SWITCH (a) Disengage the 2 cla

     Inspection

    INSPECTION PROCEDURE 1. INSPECT ENGINE SWITCH (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connecti

     Installation

    INSTALLATION PROCEDURE 1. INSTALL ENGINE SWITCH (a) Engage the 2 claws to install the engine switch to the lower instrument panel finish panel assembly. 2. INSTALL LOWER INSTRUMENT PANEL FINISH PA
