Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / 2gr-fks (starting) / Engine Switch / Removal

REMOVAL

PROCEDURE

1. REMOVE NO. 1 METER HOOD CLUSTER

Click here

2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

Click here

3. REMOVE ENGINE SWITCH

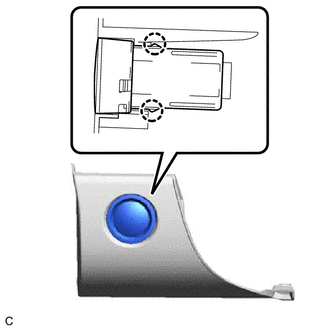

(a) Disengage the 2 claws and remove the engine switch from lower instrument panel finish panel assembly.
