Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Engine, Hybrid System / Cruise Control / Front Camera / Components

COMPONENTS

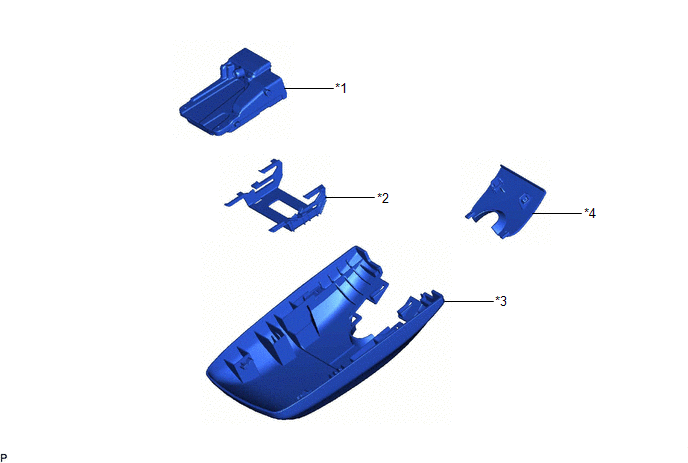

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

FORWARD RECOGNITION LATCH

*3

NO. 1 FORWARD RECOGNITION COVER

*4

NO. 2 FORWARD RECOGNITION COVER
