Toyota Camry (XV70): Components

COMPONENTS

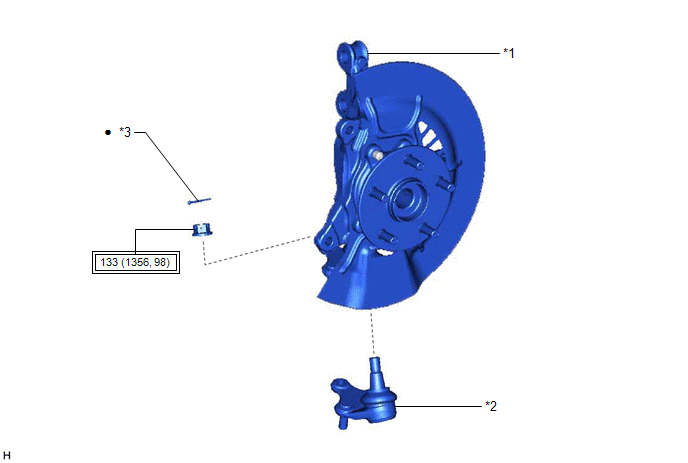

ILLUSTRATION

*1

FRONT AXLE ASSEMBLY

*2

FRONT LOWER BALL JOINT ASSEMBLY

*3

COTTER PIN

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part
