Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Suspension / Front Suspension / Front Shock Absorber / Components

COMPONENTS

ILLUSTRATION

*1

FRONT SHOCK ABSORBER WITH COIL SPRING

*2

FRONT SPEED SENSOR

*3

FRONT STABILIZER LINK ASSEMBLY

*4

FRONT FLEXIBLE HOSE

*5

STEERING KNUCKLE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

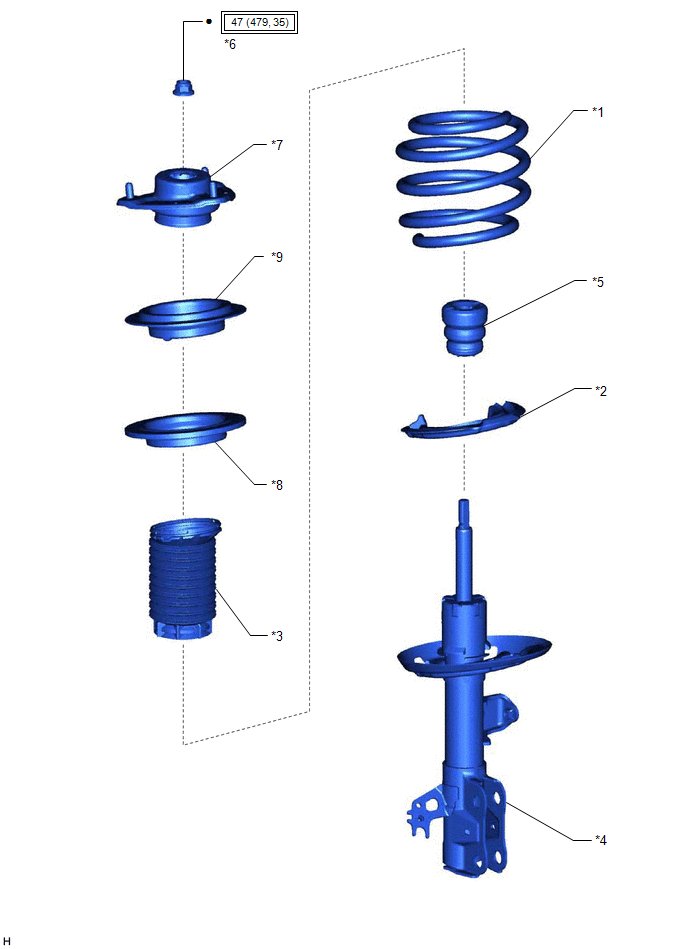

ILLUSTRATION

*1

FRONT COIL SPRING

*2

FRONT LOWER COIL SPRING INSULATOR

*3

FRONT NO. 1 SHOCK ABSORBER DUST COVER

*4

FRONT SHOCK ABSORBER ASSEMBLY

*5

FRONT SPRING BUMPER

*6

FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

*7

FRONT SUSPENSION SUPPORT SUB-ASSEMBLY

*8

FRONT UPPER COIL SPRING INSULATOR

*9

STRUT MOUNTING BEARING

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
