Toyota Camry (XV70): Components

COMPONENTS

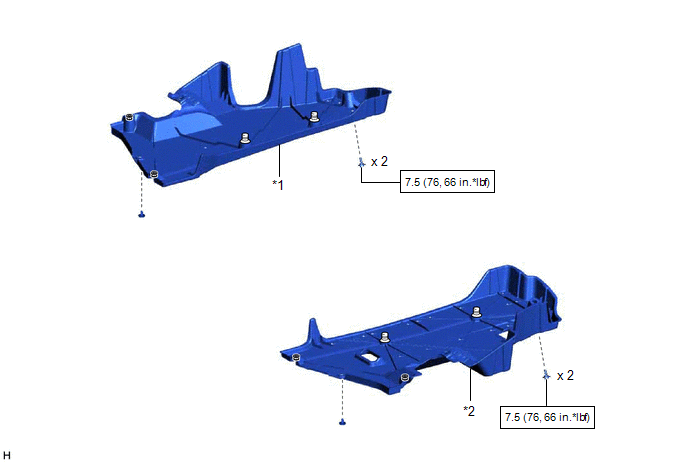

ILLUSTRATION

*1

NO. 1 FLOOR UNDER COVER

*2

NO. 2 FLOOR UNDER COVER

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

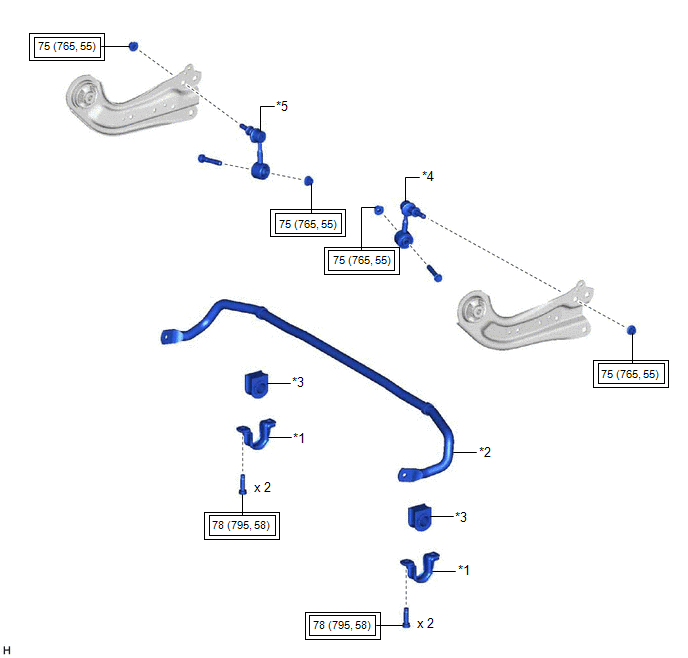

ILLUSTRATION

*1

REAR NO. 1 STABILIZER BAR BRACKET

*2

REAR STABILIZER BAR

*3

REAR STABILIZER BUSHING

*4

REAR STABILIZER LINK ASSEMBLY LH

*5

REAR STABILIZER LINK ASSEMBLY RH

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-
