Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Door / Hatch / Luggage Compartment Door / Components

COMPONENTS

ILLUSTRATION

*1

LUGGAGE COMPARTMENT DOOR COVER

*2

LUGGAGE COMPARTMENT DOOR HINGE COVER LH

*3

LUGGAGE COMPARTMENT DOOR HINGE COVER RH

*4

LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

*5

LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

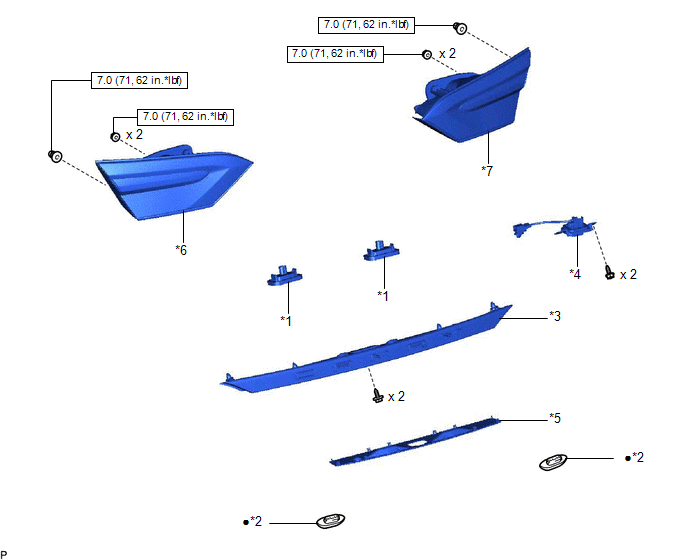

ILLUSTRATION

*1

LICENSE PLATE LIGHT ASSEMBLY

*2

LUGGAGE COMPARTMENT DOOR CUSHION

*3

LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

*4

LUGGAGE ELECTRICAL KEY SWITCH

*5

NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

*6

REAR LIGHT ASSEMBLY LH

*7

REAR LIGHT ASSEMBLY RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

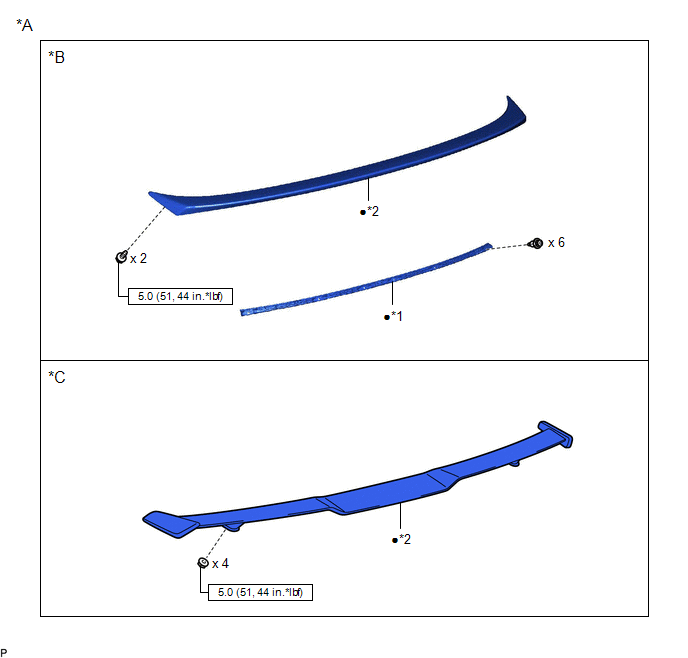

ILLUSTRATION

*A

w/ Rear Spoiler

*B

except TRD

*C

for TRD

-

-

*1

REAR SPOILER

*2

REAR SPOILER RETAINER

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
