Toyota Camry (XV70): Disassembly
DISASSEMBLY
PROCEDURE

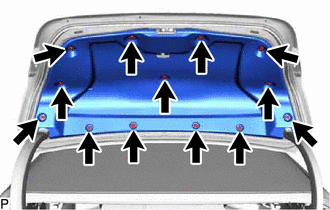

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER
| (a) Using a clip remover, remove the 13 clips and luggage compartment door cover. |
|

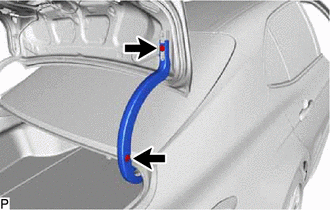

2. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
| (a) Remove the 2 clips and luggage compartment door hinge cover LH. |
|
3. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH
| (a) Remove the 2 clips and luggage compartment door hinge cover RH. |
|
4. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
Click here
.gif)

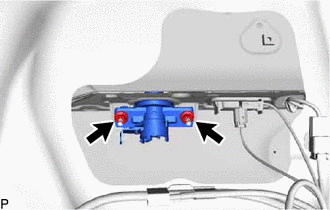

5. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
| (a) Remove the 2 nuts and luggage compartment door lock cylinder assembly. |
|
6. REMOVE REAR LIGHT ASSEMBLY LH
Click here
7. REMOVE REAR LIGHT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
8. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
Click here
9. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Click here
10. REMOVE LUGGAGE ELECTRICAL KEY SWITCH
Click here
11. REMOVE LICENSE PLATE LIGHT ASSEMBLY (for LH Side)
Click here
12. REMOVE LICENSE PLATE LIGHT ASSEMBLY (for RH Side)
HINT:
Use the same procedure as for the LH side.

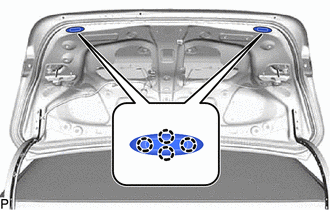

13. REMOVE LUGGAGE COMPARTMENT DOOR CUSHION
| (a) Disengage the 8 claws to remove the 2 luggage compartment door cushions. |
|
14. REMOVE REAR SPOILER (w/ Rear Spoiler)
Click here
15. REMOVE REAR SPOILER RETAINER (w/ Rear Spoiler)
except TRD:
Click here
