Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Rear Spoiler / Components

COMPONENTS

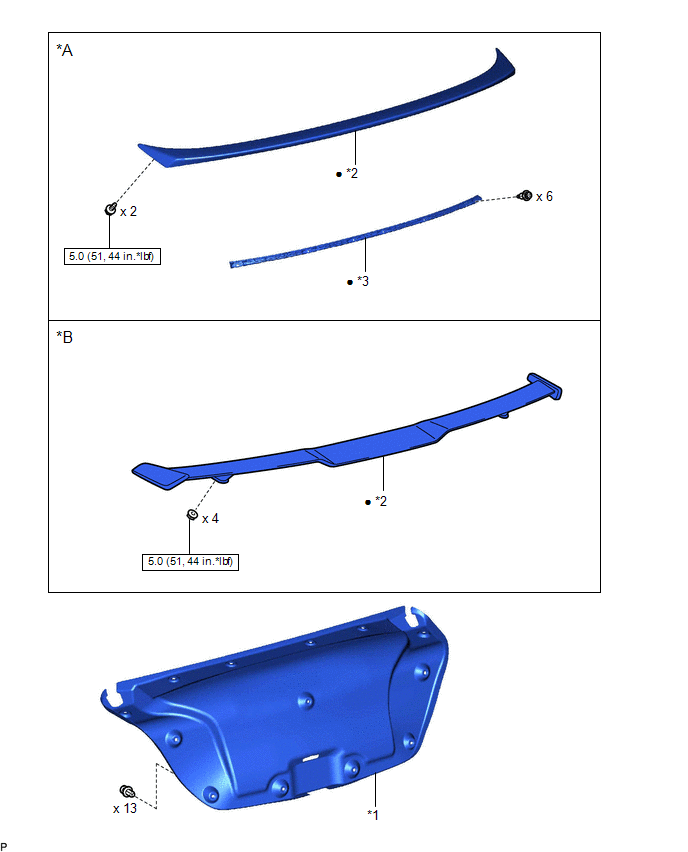

ILLUSTRATION

*A

except TRD

*B

for TRD

*1

LUGGAGE COMPARTMENT DOOR COVER

*2

REAR SPOILER

*3

REAR SPOILER RETAINER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
