Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Rear Spoiler / Removal

REMOVAL

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

Click here

2. REMOVE REAR SPOILER

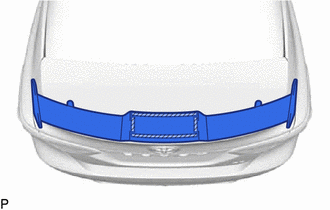

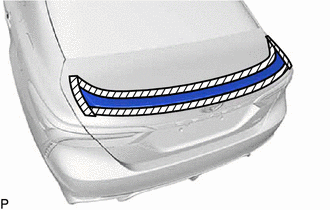

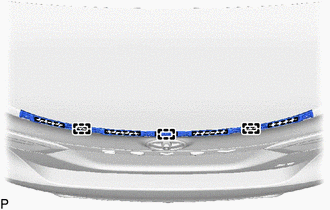

(a) Apply protective tape around the rear spoiler as shown in the illustration.

Protective Tape

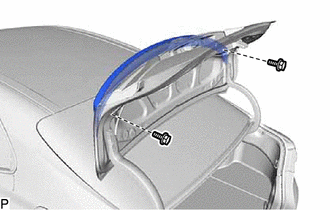

(b) except TRD:

(1) Remove the 2 bolts.

(2) Separate the double-sided tape and remove the rear spoiler.

Double-sided Tape

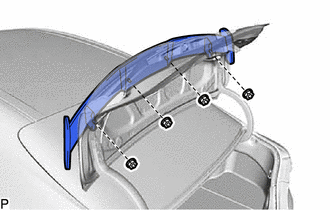

(c) for TRD:

(1) Remove the 4 nuts.

(2) Separate the double-sided tape and remove the rear spoiler.

Double-sided Tape

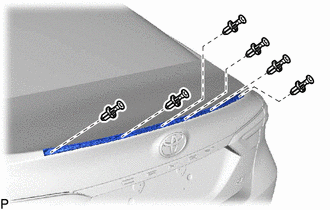

3. REMOVE REAR SPOILER RETAINER (except TRD)

(a) Remove the 6 clips.

(b) Separate the double-sided tape and disengage the 3 guides to remove the rear spoiler retainer.

Double-sided Tape
