Toyota Camry (XV70): Rear Wheel House Plate
Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Rear Wheel House Plate
Components
COMPONENTS

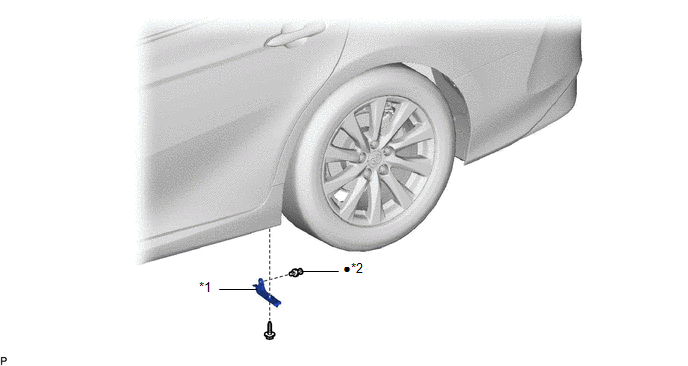

ILLUSTRATION
|
*1 | FRONT ROCKER PANEL MOULDING END COVER |
*2 | CLIP |
|
● | Non-reusable part |
- | - |
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE FRONT ROCKER PANEL MOULDING END COVER

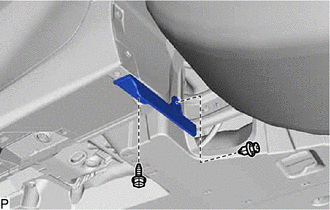

| (a) Remove the clip. |
|
(b) Remove the screw and front rocker panel moulding end cover.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL FRONT ROCKER PANEL MOULDING END COVER
(a) Install the front rocker panel moulding end cover with the screw.
(b) Install a new clip.
