Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Lighting (ext) / Rear Combination Light Assembly / Components

COMPONENTS

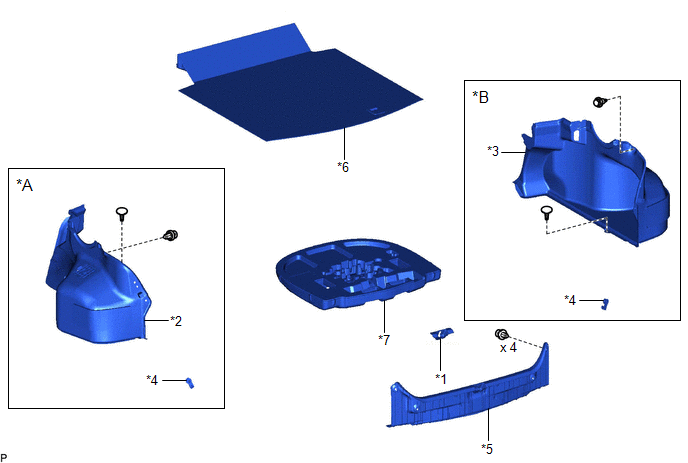

ILLUSTRATION

*A

for LH Side

*B

for RH Side

*1

LUGGAGE COMPARTMENT DOOR STRIKER COVER

*2

LUGGAGE COMPARTMENT TRIM INNER COVER LH

*3

LUGGAGE COMPARTMENT TRIM INNER COVER RH

*4

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*5

REAR FLOOR FINISH PLATE

*6

SPARE WHEEL COVER ASSEMBLY

*7

SPARE WHEEL COVER TRAY

-

-

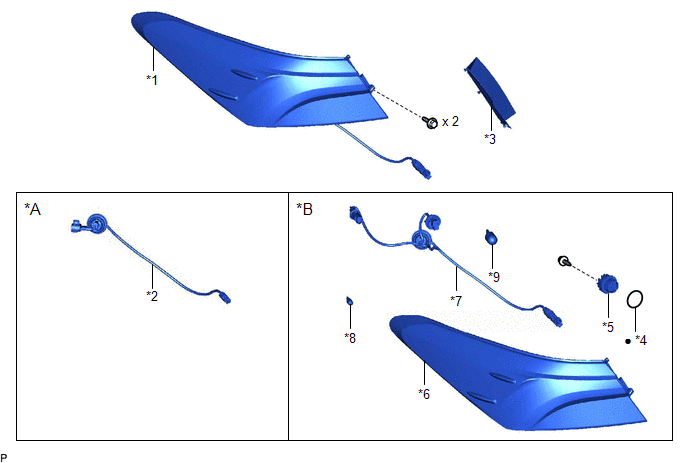

ILLUSTRATION

*A

for LED Type Back-up Light

*B

for Bulb Type Back-up Light

*1

REAR COMBINATION LIGHT ASSEMBLY

*2

REAR COMBINATION LIGHT CORD

*3

REAR COMBINATION LIGHT COVER

*4

REAR COMBINATION LIGHT GASKET

*5

REAR COMBINATION LIGHT LED

*6

REAR COMBINATION LIGHT LENS AND BODY

*7

REAR COMBINATION LIGHT SOCKET AND WIRE

*8

REAR SIDE MARKER LIGHT BULB

*9

REAR TURN SIGNAL LIGHT BULB

-

-

●

Non-reusable part

-

-
