Toyota Camry: Summary of functions

The multi-information display presents the driver with a variety of driving- related data, such as the current outside temperature. The multi-information display can also be used to change the display settings and other settings.

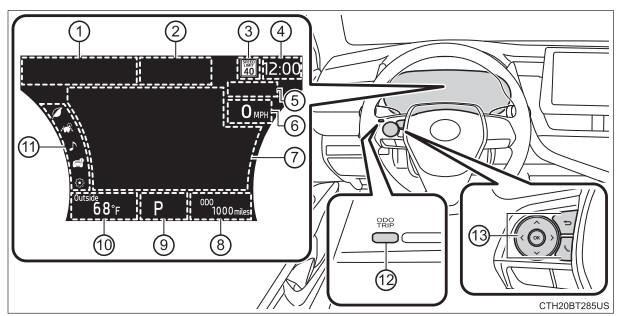

Multi-information display (7-inch display)

  1. Indicators
  2. Driving assist system status display area
    Displays the operational status of the following systems:
    • Dynamic radar cruise control with full-speed range (if equipped)
    • Dynamic radar cruise control (if equipped)
    • LTA (Lane Tracing Assist)
  3. Speed limit display (vehicles with a navigation system)
    (U.S.A. only) /RSA (Road Sign Assist) (if equipped)
  4. Clock
  5. RSA (Road Sign Assist) (if equipped)
  6. Speedometer
    The speedometer display can be enabled/disabled in on the multi-information display.
  7. Content display area
    A variety of information can be displayed by selecting a menu icon. Additionally, warning or suggestion/advice pop-up displays will be displayed in some situations.
    • Menu icon content
    • Suggestion function
    • Warning message
  8. Odometer/trip meter
  9. Shift position
  10. Outside temperature
  11. Menu icons
  12. "ODO/TRIP" switch
  13. Meter control switches

Using the multi-information display

◆ Using the content display area

The content display area is operated using the meter control switches.

  1. Scroll screens*, change the displayed content* and move the cursor
  2. Press: Enter/Set
    Press and hold: Reset/Display the next screen
  3. Return to the previous screen
    Pressing and holding the switch will display the first screen of the selected menu icon.
  4. Call sending/receiving and history display
    Linked with the hands-free system, sending or receiving call is displayed.

    For details regarding the hands-free system, refer to "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

Multi-information display (7-inch display)

*: When the screen can be scrolled or different content can be displayed, a mark, such as an arrow, will be displayed to suggest which switch to operate.

◆ Using the odometer/trip meter

Items in this area are operated using the "ODO/TRIP" switch.

Press: Change displayed item

Each time the switch is pressed, the displayed item will be changed.

Press and hold: Reset

Display the desired trip meter and press and hold the switch to reset the trip meter.

Multi-information display (7-inch display)

Menu icons

Select a menu icon to display its content.

Warning message display

This menu icon will be displayed only when a warning message can be displayed.

Select to display warning messages and measures to be taken if a malfunction is detected.

Eco-friendly driving information

Select to display fuel consumption data in various forms.

Driving assist system information

Select to perform the following:

Display the operational status of the following systems:

  • Dynamic radar cruise control with full-speed range (if equipped)
  • Dynamic radar cruise control (if equipped)
  • LTA (Lane Tracing Assist)
  • RSA (Road Sign Assist) (if equipped)

Display the following navigation system-linked information (if equipped):

  • Route guidance
  • Compass display

Audio system-linked display

Select to enable selection of an audio source or track on the meter using the meter control switches.

Vehicle information

Select to perform the following:

Display the following information:

  • Tire inflation pressure

Enable/Disable the following systems:

  • Intuitive parking assist (if equipped)
  • BSM (Blind Spot Monitor) function (if equipped)
  • RCTA (Rear Cross Traffic Alert) function (if equipped)

This function can also be enabled/disabled on .

Settings display

Select to change the meter display settings and other settings.
