Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Lighting (ext) / Rear Light Assembly / Components

COMPONENTS

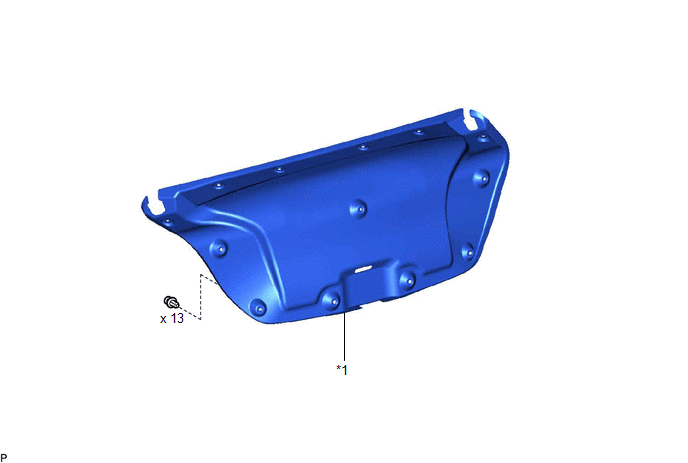

ILLUSTRATION

*1

LUGGAGE COMPARTMENT DOOR COVER

-

-

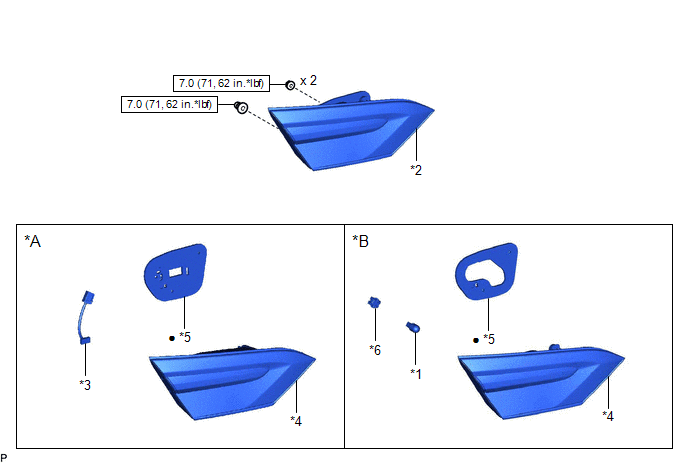

ILLUSTRATION

*A

for LED Type Back-up Light

*B

for Bulb Type Back-up Light

*1

BACK-UP LIGHT BULB

*2

REAR LIGHT ASSEMBLY

*3

REAR LIGHT CORD

*4

REAR LIGHT LENS AND BODY

*5

REAR LIGHT PACKING

*6

REAR LIGHT SOCKET PLUG

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
