Toyota Camry (XV70): Removal

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Lighting (ext) / Rear Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

Click here

2. REMOVE REAR LIGHT ASSEMBLY

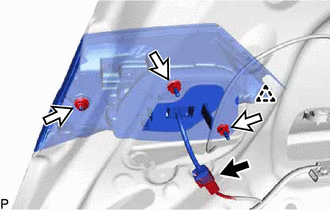

(a) for Bulb Type Back-up Light:

(1) Disconnect the connector.

(2) Remove the 3 nuts.

(3) Disengage the clip to remove the rear light assembly.

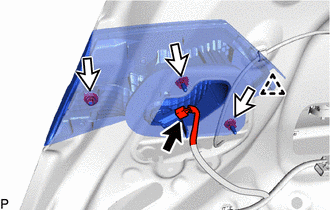

(b) for LED Type Back-up Light:

(1) Disconnect the connector.

(2) Remove the 3 nuts.

(3) Disengage the clip to remove the rear light assembly.
