Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Lighting (ext) / Switch Housing / Components
COMPONENTS

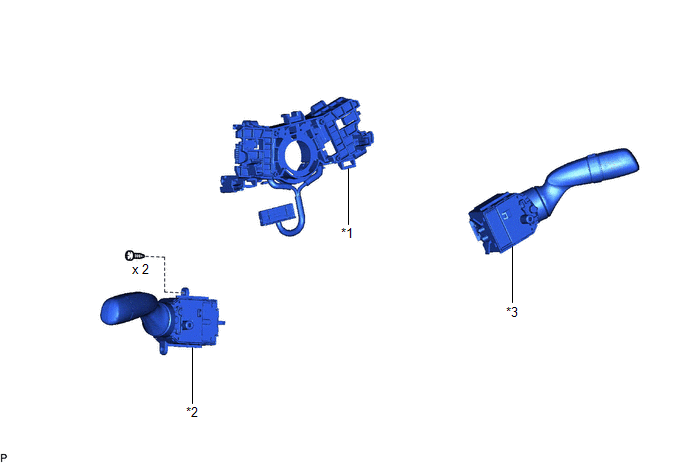

ILLUSTRATION
|
*1 | STEERING WHEEL SWITCH HOUSING |
*2 | TURN SIGNAL SWITCH |
|
*3 | WINDSHIELD WIPER SWITCH ASSEMBLY |
- | - |
