Toyota Camry (XV70): Components
COMPONENTS

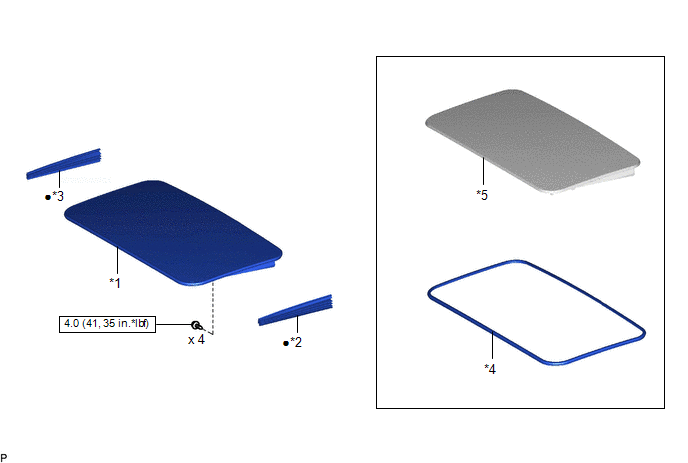

ILLUSTRATION
|
*1 | SLIDING ROOF GLASS SUB-ASSEMBLY |
*2 | SLIDING ROOF SIDE GARNISH LH |
|
*3 | SLIDING ROOF SIDE GARNISH RH |
*4 | SLIDING ROOF WEATHERSTRIP |
|
*5 | SLIDING ROOF PANEL SUB-ASSEMBLY |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |

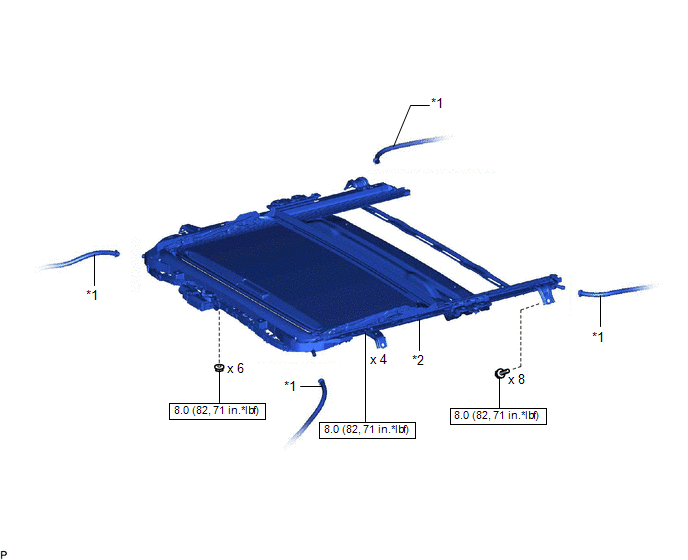

ILLUSTRATION
|
*1 | SLIDING ROOF DRAIN HOSE |
*2 | SLIDING ROOF HOUSING ASSEMBLY |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |

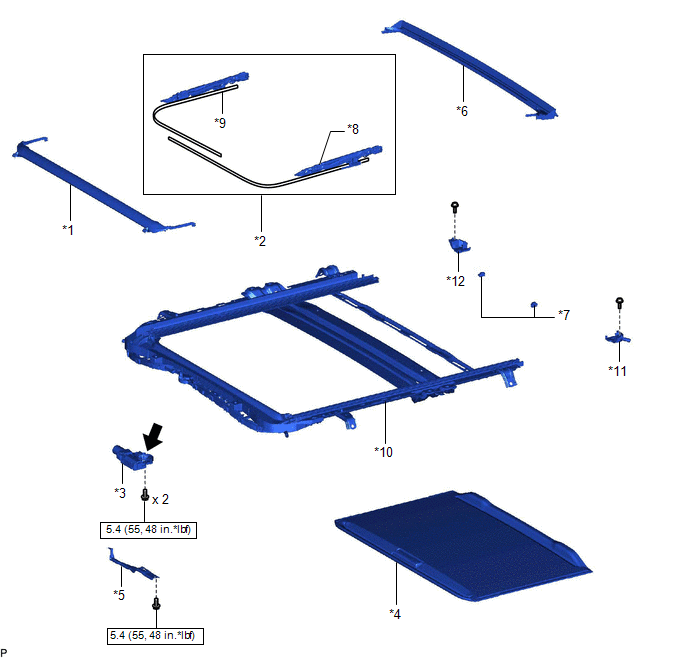

ILLUSTRATION
|
*1 | ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY |
*2 | SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY |
|
*3 | SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY |
*4 | SUNSHADE TRIM SUB-ASSEMBLY |
|
*5 | MAP LIGHT BRACKET |
*6 | REAR ROOF DRIP CHANNEL |
|
*7 | REAR SLIDING ROOF SUNSHADE STOPPER |
*8 | SLIDING ROOF DRIVE CABLE LH |
|
*9 | SLIDING ROOF DRIVE CABLE RH |
*10 | SLIDING ROOF HOUSING SUB-ASSEMBLY |
|
*11 | SLIDING ROOF PIECE SUB-ASSEMBLY LH |
*12 | SLIDING ROOF PIECE SUB-ASSEMBLY RH |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
.png) |
MP grease |
