Toyota Camry (XV70): Components
COMPONENTS

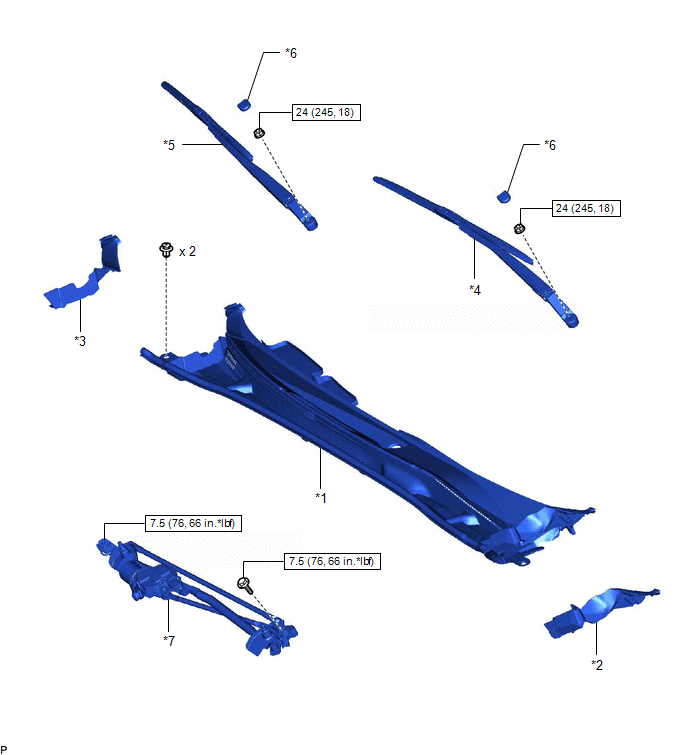

ILLUSTRATION
|
*1 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY |
*2 | FRONT FENDER TO COWL SIDE SEAL LH |
|
*3 | FRONT FENDER TO COWL SIDE SEAL RH |
*4 | FRONT WIPER ARM AND BLADE ASSEMBLY LH |
|
*5 | FRONT WIPER ARM AND BLADE ASSEMBLY RH |
*6 | FRONT WIPER ARM HEAD CAP |
|
*7 | WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |

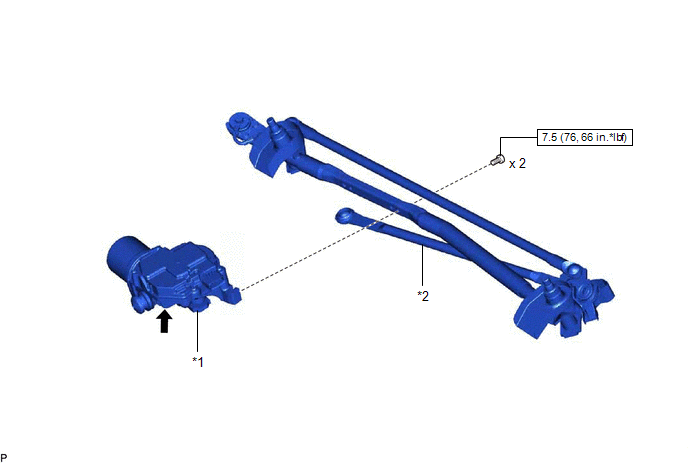

ILLUSTRATION
|
*1 | WINDSHIELD WIPER MOTOR ASSEMBLY |
*2 | WIPER LINK ASSEMBLY |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
.png) |
MP grease |
