REMOVAL

CAUTION / NOTICE / HINT

NOTICE:

Make sure to hold the front wiper arm while lifting it as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.

PROCEDURE

1. REMOVE FRONT WIPER ARM HEAD CAP

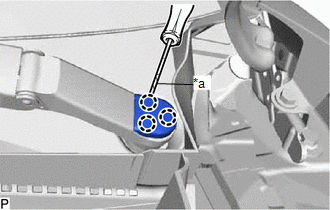

(a) Using a screwdriver, disengage the 3 claws to remove the front wiper arm head cap. HINT: Tape the screwdriver tip before use. Use the same procedure for the RH side and LH side.

*a Protective Tape

2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

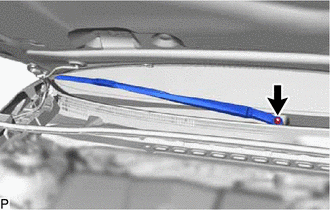

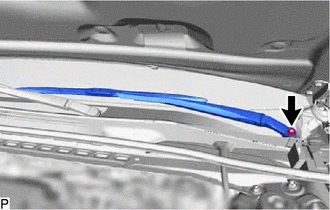

(a) Remove the nut and front wiper arm and blade assembly LH.

3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

(a) Remove the nut and front wiper arm and blade assembly RH.

4. REMOVE FRONT FENDER TO COWL SIDE SEAL LH

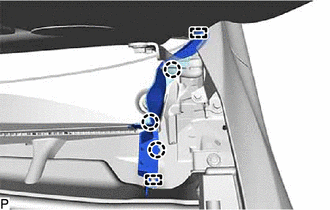

(a) Disengage the 3 claws and 2 guides to remove the front fender to cowl side seal LH.

5. REMOVE FRONT FENDER TO COWL SIDE SEAL RH

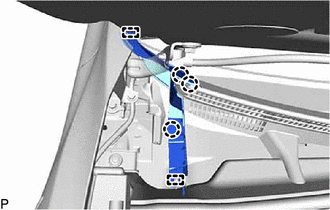

(a) Disengage the 3 claws and 2 guides to remove the front fender to cowl side seal RH.

6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

NOTICE:

To prevent damage to the windshield glass, remove any foreign matter (sand, dust, etc.) from around the contacting surfaces of the cowl top ventilator louver sub-assembly and windshield glass.

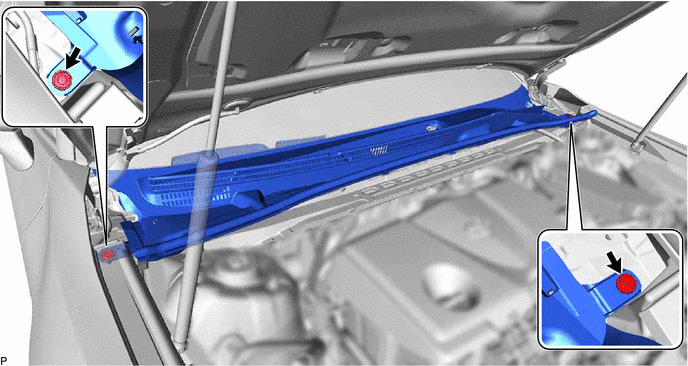

(a) Remove the 2 clips.

(b) Close the hood sub-assembly.

(c) Apply protective tape to a moulding remover as shown in the illustration.

*a	Edge of Protective Tape
	Protective Tape

Standard Dimension:

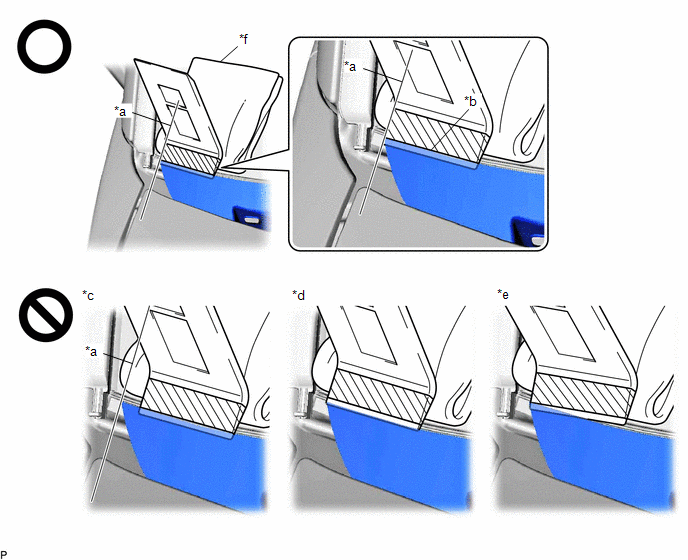

(d) Insert the moulding remover at the starting position until the edge of the protective tape is aligned with the cowl top ventilator louver sub-assembly as shown in the illustration.

*a	Starting Position: Side of Cowl Top Ventilator Louver Sub-assembly and Moulding Remover Aligned	*b	Inserted to Edge of Protective Tape
*c	Not Inserted at Starting Position	*d	Not Inserted to Edge of Protective Tape
*e	Not Inserted Straight	*f	Piece of Cloth or Equivalent
	Protective Tape	-	-

NOTICE:

• To prevent damage to the windshield glass, set a piece of cloth between the moulding remover and windshield glass.

• Make sure to insert the moulding remover until the edge of protective tape is aligned with the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

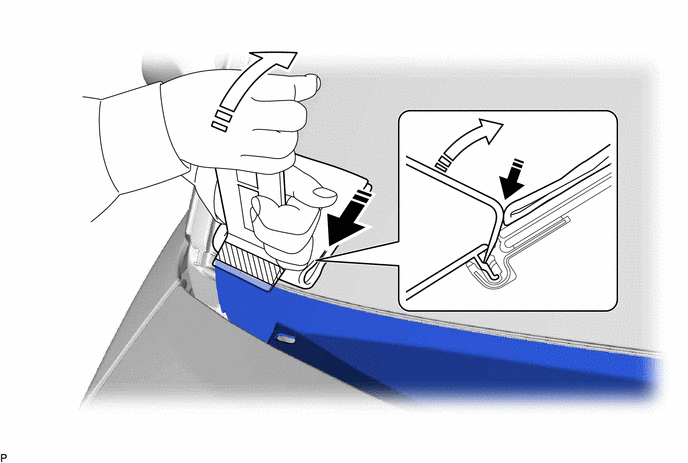

(e) While pushing the moulding remover in the direction indicated by the arrow (A), push the moulding remover in the direction indicated by the arrow (B) to disengage the cowl top ventilator louver sub-assembly.

Push in this Direction (A)

Push in this Direction (B)

NOTICE:

• Make sure to repeat this procedure to disengage the entire cowl top ventilator louver sub-assembly.

• Make sure to perform this procedure while pushing the moulding remover in the direction indicated by the arrow (A), otherwise the cowl top ventilator louver sub-assembly may be deformed or damaged.

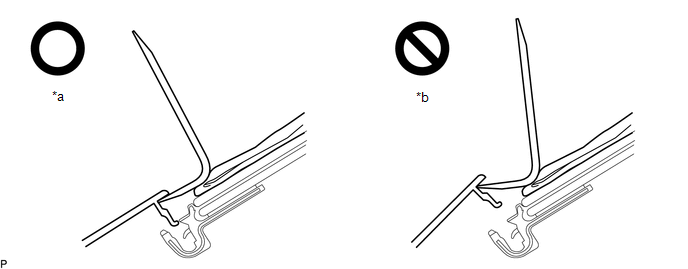

• Make sure not to pry the cowl top ventilator louver sub-assembly more than necessary to disengage it, otherwise it may be deformed or damaged.

  *a

  Pried Until Disengaged

  *b

  Pried Excessively

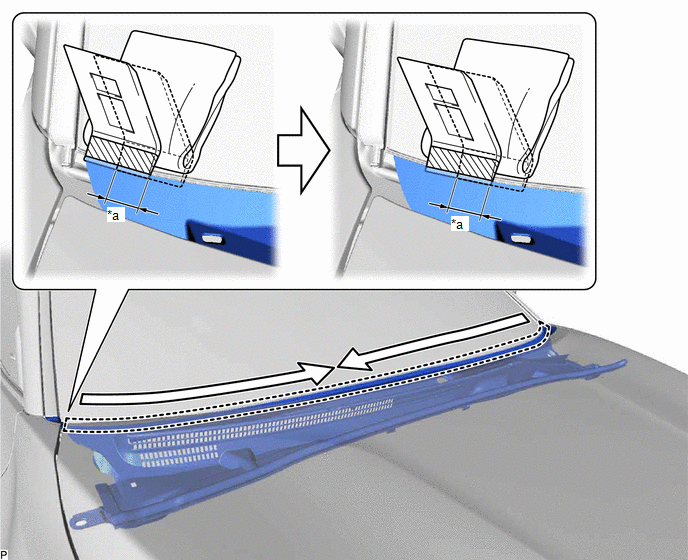

(f) Using the moulding remover, repeatedly pry up the cowl top ventilator louver sub-assembly while gradually moving the moulding remover half of its width laterally toward the center of the vehicle and then repeat the procedure from the other side of the vehicle as shown in the illustration to disengage the cowl top ventilator louver sub-assembly from the windshield glass.

*a	Half Width of Moulding Remover	-	-
	Order of Removal	-	-

NOTICE:

• Make sure to move the moulding remover only half of its width laterally after prying up the cowl top ventilator louver sub-assembly, otherwise the cowl top ventilator louver sub-assembly may be damaged or deformed.
• Make sure not to lift up or pull the cowl top ventilator louver sub-assembly by hand before it is completely disengaged, otherwise it may be deformed or damaged.

(g) Open the hood sub-assembly.

(h) Disengage the 4 claws and guide as shown in the illustration.

Remove in this Direction

-

-

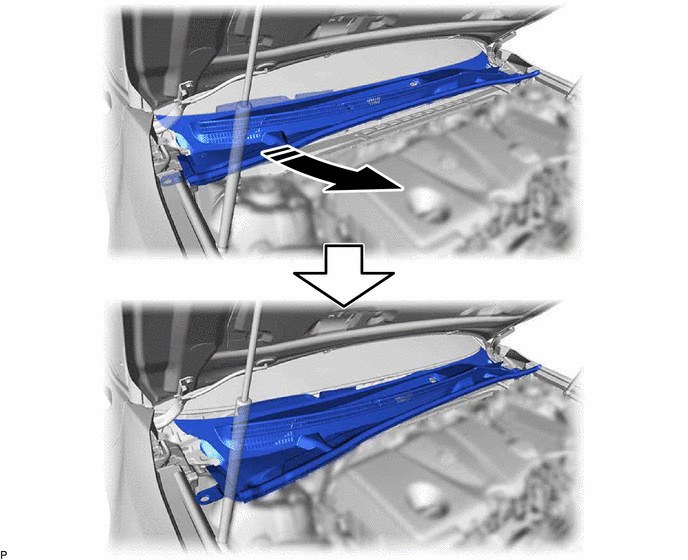

(i) Pull the passenger side of the cowl top ventilator louver sub-assembly as shown in the illustration.

Remove in this Direction

-

-

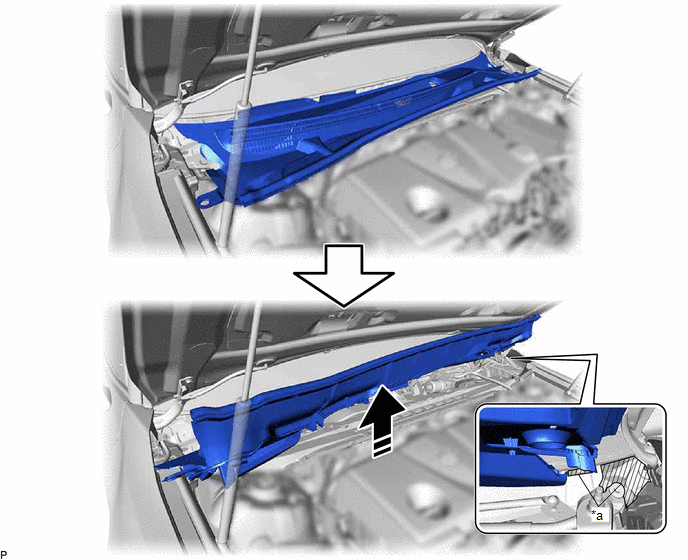

(j) Lift the front of the cowl top ventilator louver sub-assembly as shown in the illustration.

*a	Vehicle Body	-	-
	Remove in this Direction	-	-

NOTICE:

Make sure that the cowl top ventilator louver sub-assembly does not contact the vehicle body, otherwise it may be damaged.

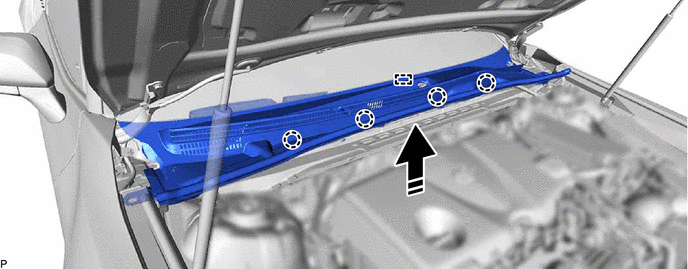

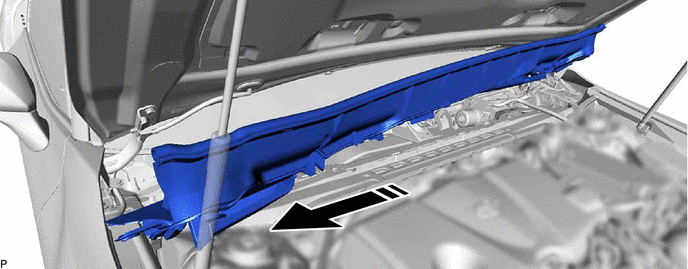

(k) Remove the cowl top ventilator louver sub-assembly as shown in the illustration.

Remove in this Direction

-

-

7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

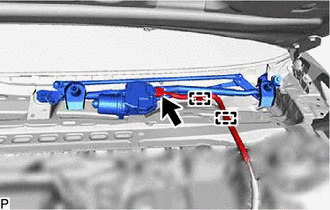

(a) Disengage the 2 clamps.

(b) Disconnect the connector.

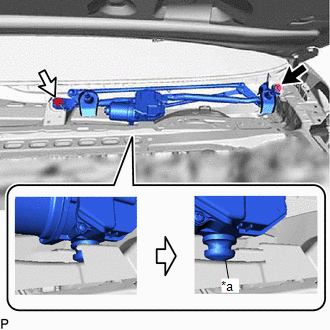

(c) Remove the bolt (A).

*a	Motor Grommet
	Bolt (A)
	Bolt (B)

(d) Remove the bolt (B).

HINT:

Remove the bolt (B) and windshield wiper motor and link assembly as a set.

(e) Disengage the motor grommet as shown in the illustration and remove the windshield wiper motor and link assembly.

NOTICE:

Be careful not to damage the windshield glass when removing the windshield wiper motor and link assembly.

8. REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

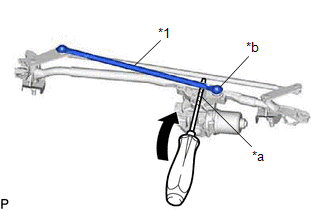

(a) Using a screwdriver, separate the No. 1 wiper link rod from the pivot of the windshield wiper motor assembly as shown in the illustration. HINT: Tape the screwdriver tip before use.

*1 No. 1 Wiper Link Rod *a Protective Tape *b Pivot of Windshield Wiper Motor Assembly

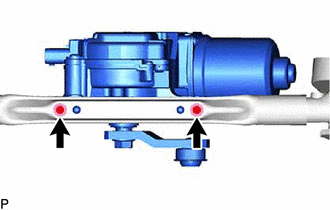

(b) Using a T30 "TORX" socket wrench, remove the 2 bolts and windshield wiper motor assembly from the wiper link assembly.
