Toyota Camry (XV70): Components

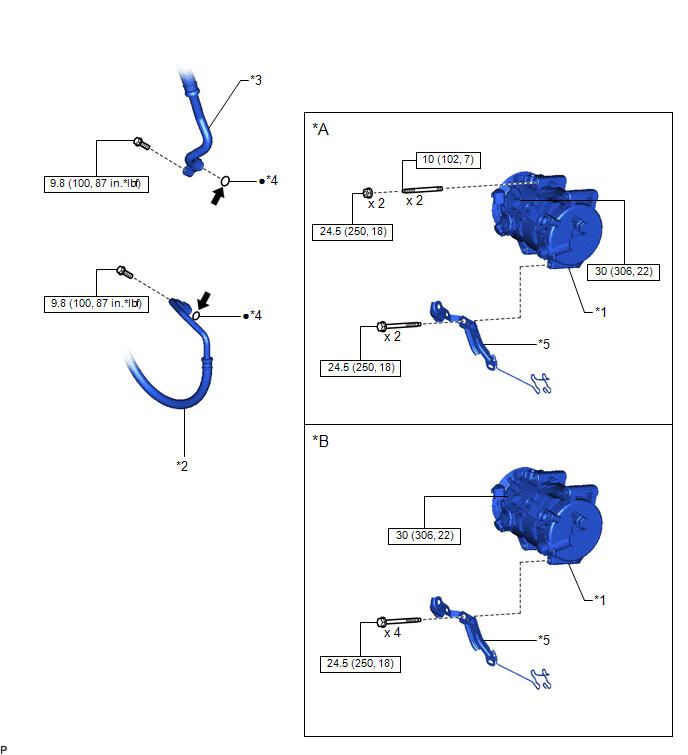

*A

for Type A

*B

for Type B

*1

COMPRESSOR ASSEMBLY WITH MAGNETIC CLUTCH

*2

NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY

*3

SUCTION HOSE SUB-ASSEMBLY

*4

O-RING

*5

BRACKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

?

Non-reusable part

Compressor oil ND-OIL 12 or equivalent

-

-

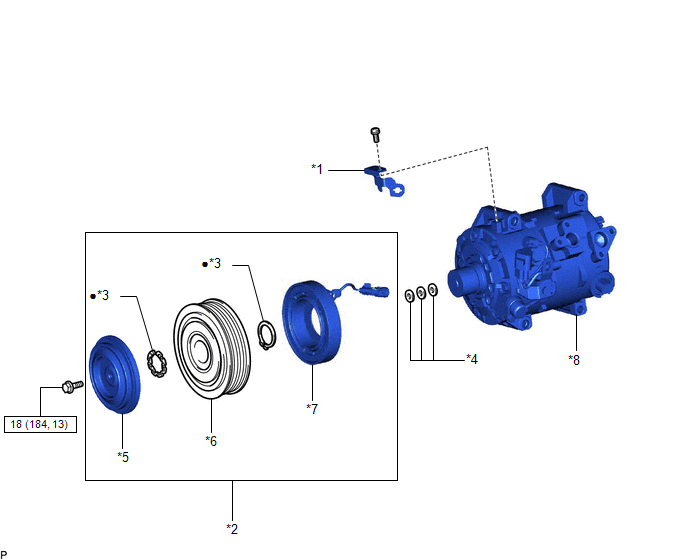

*1

COOLER COMPRESSOR BRACKET

*2

MAGNET CLUTCH ASSEMBLY

*3

SNAP RING

*4

MAGNET CLUTCH WASHER

*5

MAGNET CLUTCH HUB

*6

MAGNET CLUTCH ROTOR

*7

MAGNET CLUTCH STATOR

*8

COOLER COMPRESSOR ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

?

Non-reusable part
