Toyota Camry (XV70): Components
COMPONENTS

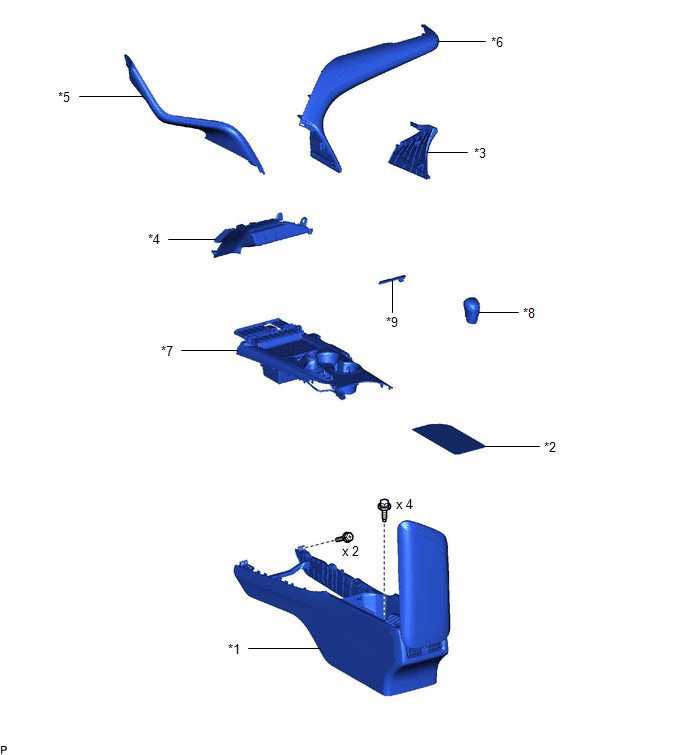

ILLUSTRATION
|
*1 | CONSOLE BOX ASSEMBLY |
*2 | CONSOLE BOX CARPET |
|
*3 | INSTRUMENT PANEL FINISH PLATE GARNISH |
*4 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
|
*5 | NO. 1 METER HOOD CLUSTER |
*6 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
|
*7 | REAR UPPER CONSOLE PANEL SUB-ASSEMBLY |
*8 | SHIFT LEVER KNOB SUB-ASSEMBLY |
|
*9 | SHIFT LOCK RELEASE BUTTON COVER |
- | - |

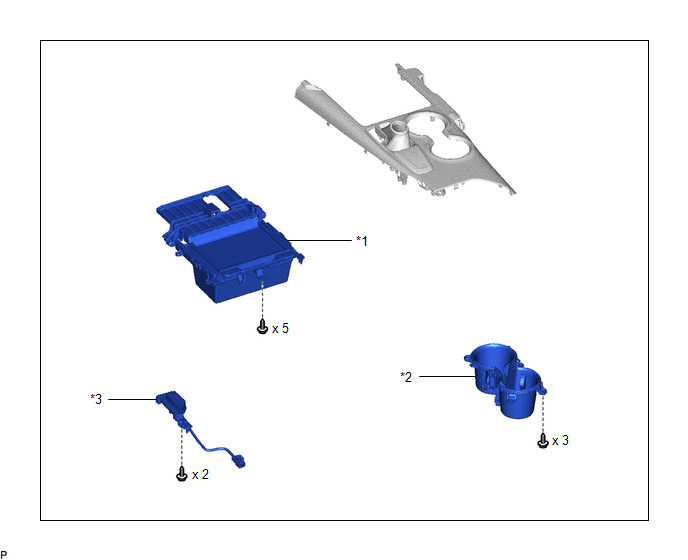

ILLUSTRATION
|
*1 | FRONT CONSOLE BOX INSERT SUB-ASSEMBLY |
*2 | INSTRUMENT PANEL CUP HOLDER |
|
*3 | SHIFT POSITION INDICATOR |
- | - |

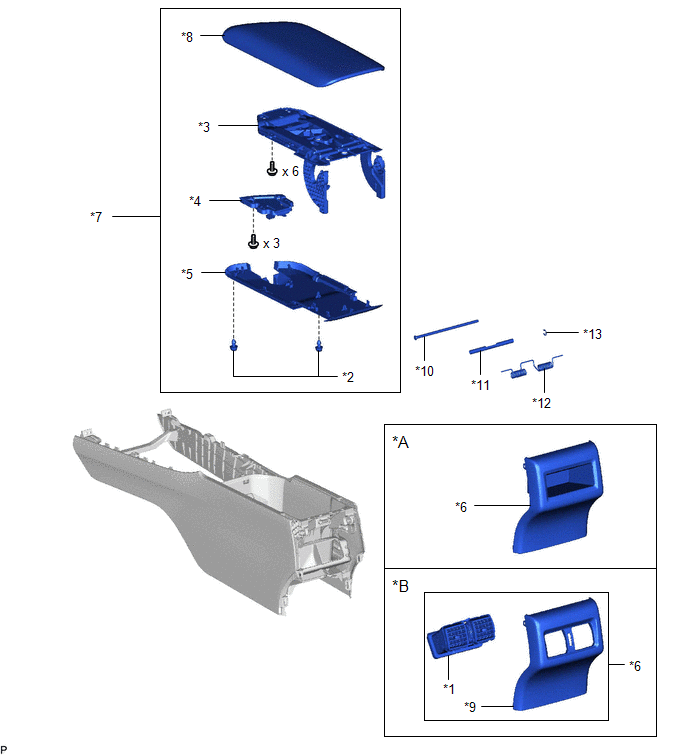

ILLUSTRATION
|
*A | w/o Register |
*B | w/ Register |
|
*1 | CONSOLE BOX REGISTER ASSEMBLY |
*2 | CONSOLE COMPARTMENT DOOR CUSHION |
|
*3 | CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY |
*4 | CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY |
|
*5 | CONSOLE COMPARTMENT DOOR PANEL |
*6 | CONSOLE REAR END PANEL SUB-ASSEMBLY |
|
*7 | REAR CONSOLE ARMREST ASSEMBLY |
*8 | CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY |
|
*9 | CONSOLE REAR END PANEL |
*10 | CONSOLE COMPARTMENT DOOR STOPPER PIN |
|
*11 | CONSOLE BOX SPACER |
*12 | CONSOLE BOX MOUNT BRACKET SPRING |
|
*13 | E-RING |
- | - |

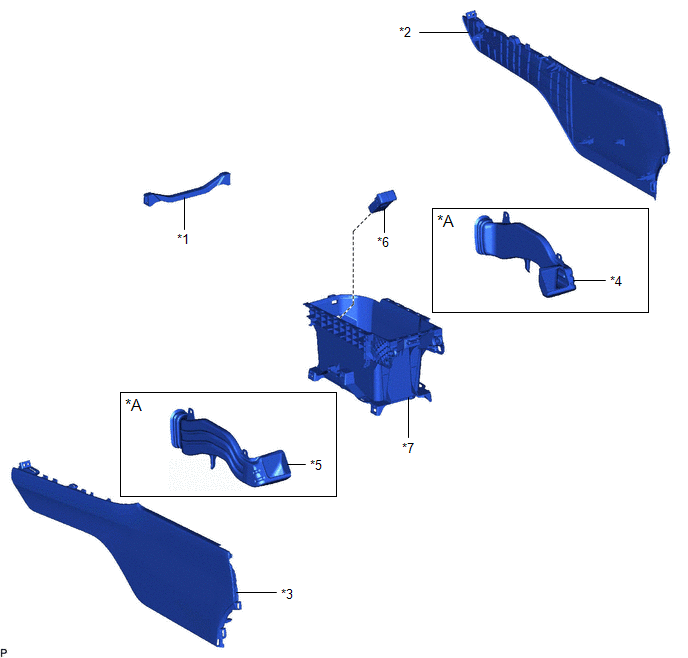

ILLUSTRATION
|
*A | w/ Register |
- | - |
|
*1 | CONSOLE BOX RETAINER |
*2 | NO. 1 BOX SIDE PANEL |
|
*3 | NO. 2 BOX SIDE PANEL |
*4 | NO. 2 CONSOLE BOX DUCT |
|
*5 | NO. 3 CONSOLE BOX DUCT |
*6 | USB CHARGER SOCKET |
|
*7 | CONSOLE BOX LOWER |
- | - |
