Toyota Camry (XV70): Components

COMPONENTS

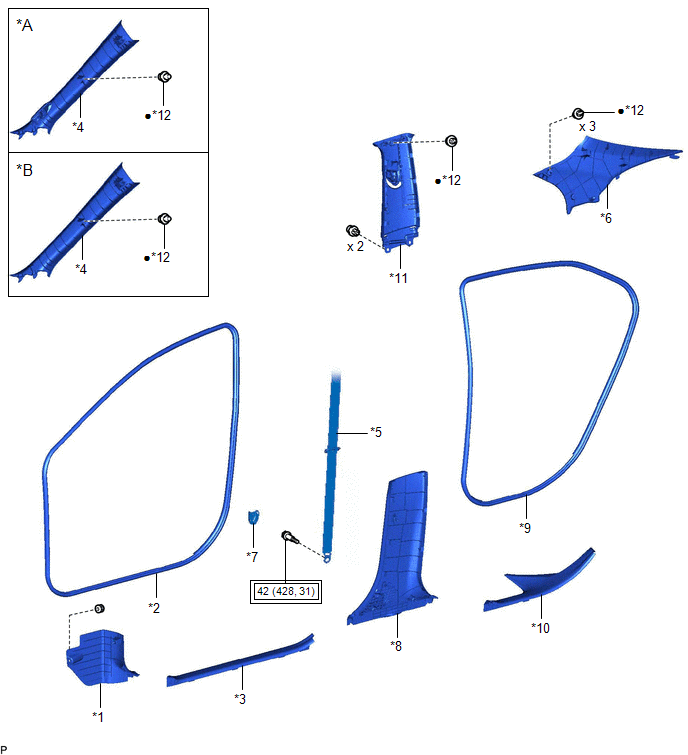

ILLUSTRATION

*A

w/ Front No. 3 Speaker

*B

w/o Front No. 3 Speaker

*1

COWL SIDE TRIM SUB-ASSEMBLY LH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*3

FRONT DOOR SCUFF PLATE LH

*4

FRONT PILLAR GARNISH LH

*5

FRONT SEAT OUTER BELT ASSEMBLY LH

*6

INNER ROOF SIDE GARNISH LH

*7

LAP BELT OUTER ANCHOR COVER

*8

LOWER CENTER PILLAR GARNISH LH

*9

REAR DOOR OPENING TRIM WEATHERSTRIP LH

*10

REAR DOOR SCUFF PLATE LH

*11

UPPER CENTER PILLAR GARNISH LH

*12

CLIP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

?

Non-reusable part

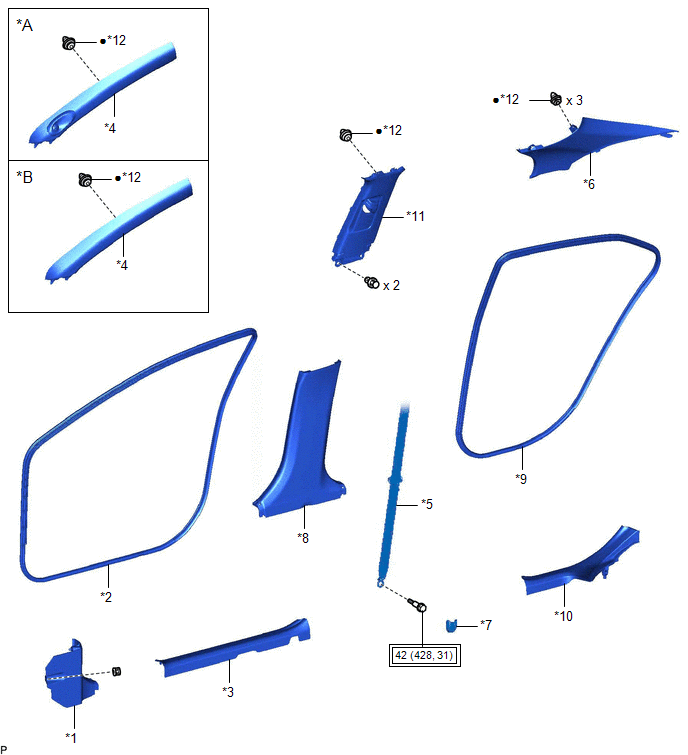

ILLUSTRATION

*A

w/ Front No. 3 Speaker

*B

w/o Front No. 3 Speaker

*1

COWL SIDE TRIM SUB-ASSEMBLY RH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

*3

FRONT DOOR SCUFF PLATE RH

*4

FRONT PILLAR GARNISH RH

*5

FRONT SEAT OUTER BELT ASSEMBLY RH

*6

INNER ROOF SIDE GARNISH RH

*7

LAP BELT OUTER ANCHOR COVER

*8

LOWER CENTER PILLAR GARNISH RH

*9

REAR DOOR OPENING TRIM WEATHERSTRIP RH

*10

REAR DOOR SCUFF PLATE RH

*11

UPPER CENTER PILLAR GARNISH RH

*12

CLIP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

?

Non-reusable part

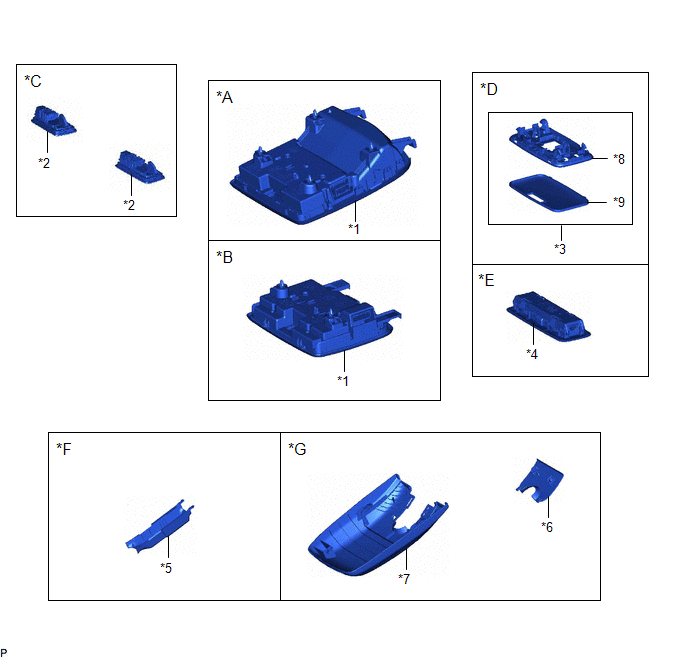

ILLUSTRATION

*A

for Normal Roof

*B

except Normal Roof

*C

w/ Vanity Light

*D

for Bulb Type

*E

for LED Type

*F

w/ Cover

*G

w/ Pre-collision System

-

-

*1

ROOF CONSOLE BOX ASSEMBLY

*2

VANITY LIGHT ASSEMBLY

*3

ROOM LIGHT ASSEMBLY

*4

SPOT LIGHT ASSEMBLY

*5

INNER REAR VIEW MIRROR STAY HOLDER COVER

*6

NO. 2 FORWARD RECOGNITION COVER

*7

NO. 1 FORWARD RECOGNITION COVER

*8

ROOM LIGHT HOUSING

*9

ROOM LIGHT LENS

-

-

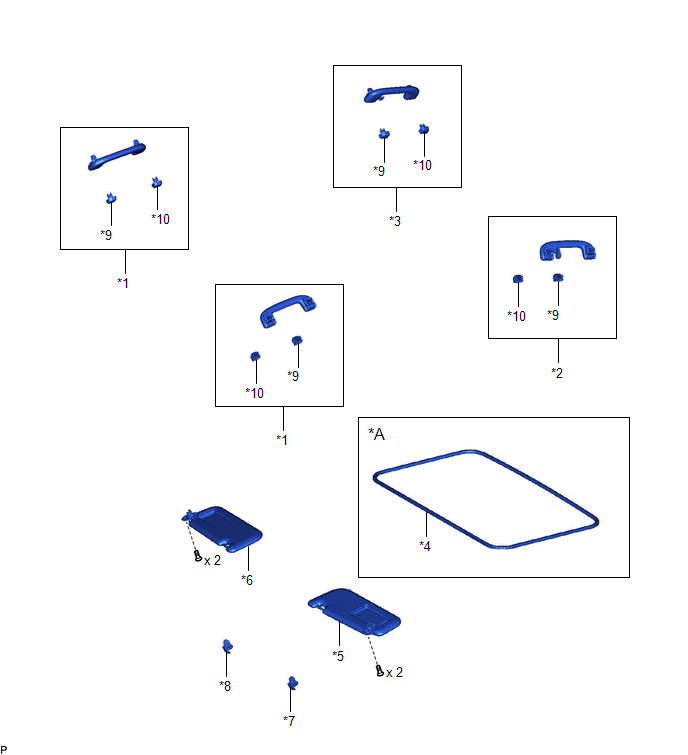

ILLUSTRATION

*A

for Moon Roof

-

-

*1

ASSIST GRIP ASSEMBLY

*2

REAR ASSIST GRIP ASSEMBLY LH

*3

REAR ASSIST GRIP ASSEMBLY RH

*4

SUN ROOF OPENING TRIM MOULDING

*5

VISOR ASSEMBLY LH

*6

VISOR ASSEMBLY RH

*7

VISOR HOLDER LH

*8

VISOR HOLDER RH

*9

ASSIST GRIP COVER LH

*10

ASSIST GRIP COVER RH

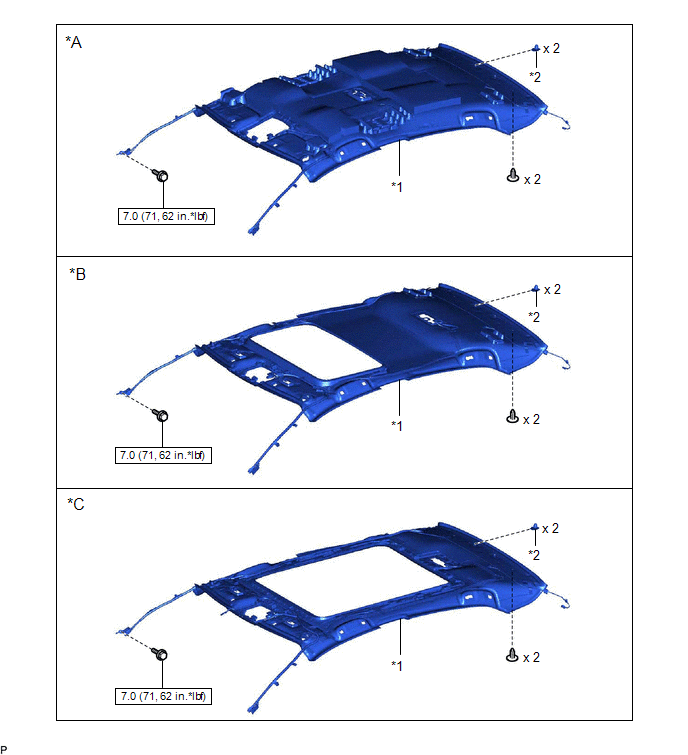

ILLUSTRATION

*A

for Normal Roof

*B

for Moon Roof

*C

for Panoramic Moon Roof

-

-

*1

ROOF HEADLINING ASSEMBLY

*2

Clip

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

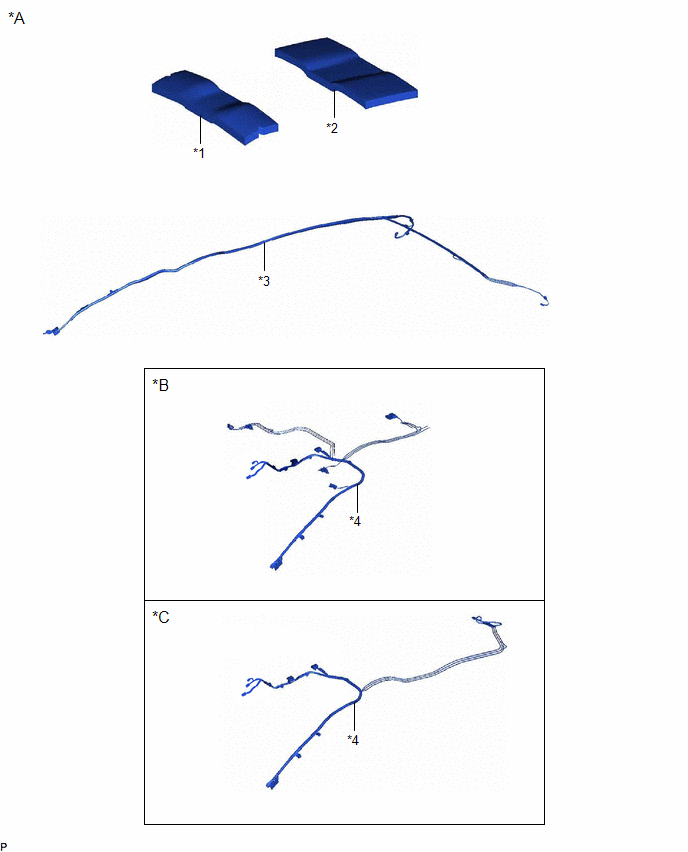

ILLUSTRATION

*A

for Normal Roof

*B

w/ Room Light Assembly

*C

w/ Spot Light Assembly

-

-

*1

NO. 2 ROOF SILENCER

*2

NO. 4 ROOF SILENCER

*3

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*4

NO. 1 ROOF WIRE

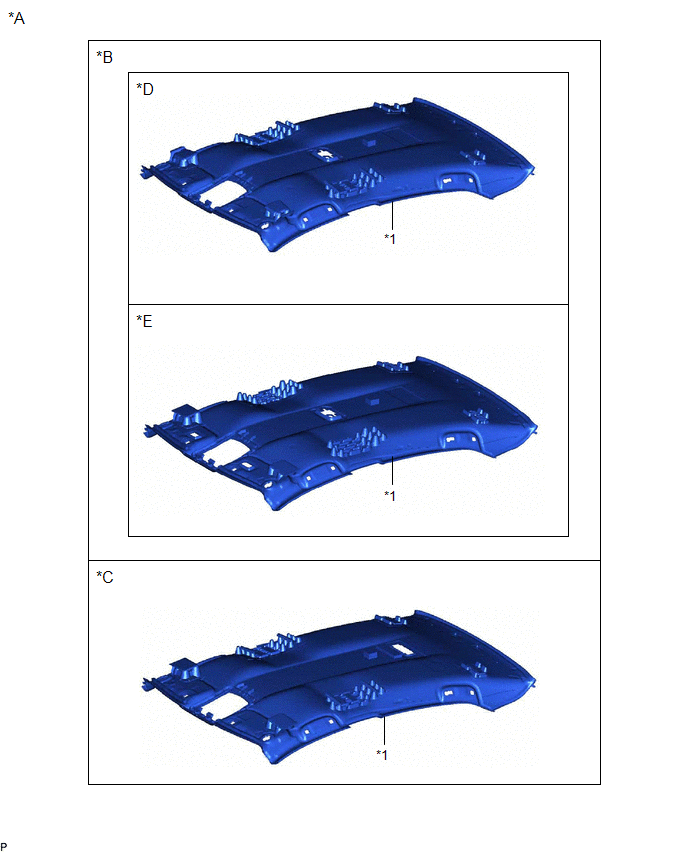

ILLUSTRATION

*A

for Normal Roof

*B

w/ Room Light Assembly

*C

w/ Spot Light Assembly

*D

w/o Vanity Light

*E

w/ Vanity Light

-

-

*1

ROOF HEADLINING

-

-

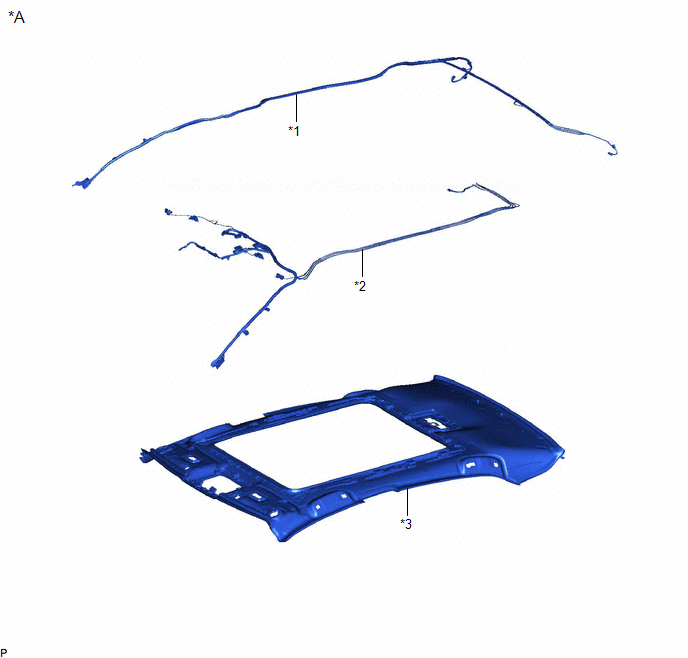

ILLUSTRATION

*A

for Moon Roof

-

-

*1

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*2

NO. 1 ROOF WIRE

*3

ROOF HEADLINING

-

-

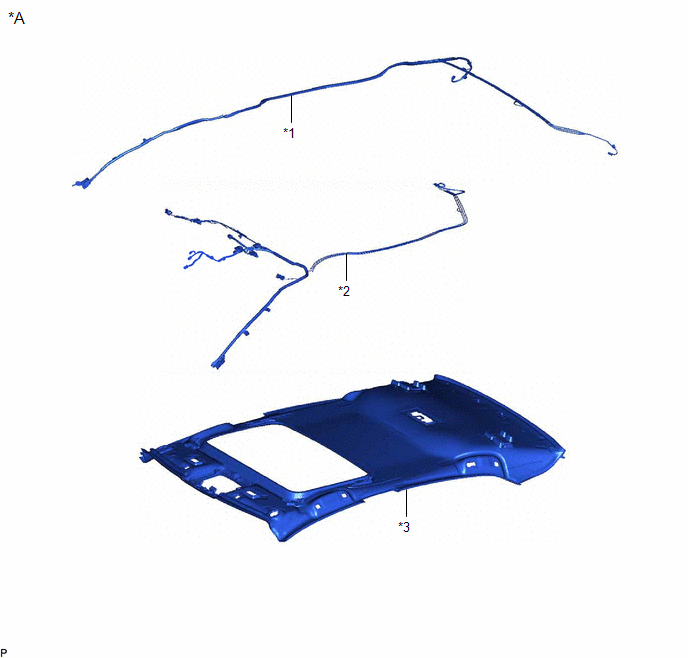

ILLUSTRATION

*A

for Panoramic Moon Roof

-

-

*1

NO. 2 ANTENNA CORD SUB-ASSEMBLY

*2

NO. 1 ROOF WIRE

*3

ROOF HEADLINING

-

-
