Toyota Camry (XV70): Diagnosis System

DIAGNOSIS SYSTEM

DIAGNOSIS FUNCTION

(a) The diagnosis function turns off the cruise control indicator, illuminates the master warning light and displays a warning message when a malfunction is detected. When a malfunction is detected in the dynamic radar cruise control system, DTCs are stored in the ECM or forward recognition camera.

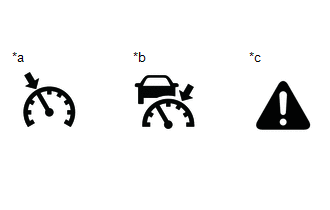

*a

Cruise Control Indicator

(Constant Speed Control Mode)

*b

Cruise Control Indicator

(Vehicle-to-vehicle Distance Control Mode)

*c

Master Warning Light

NOTICE:

As data stored in the ECU will be cleared, do not remove any fuses or disconnect the cable from the negative (-) battery terminal before the inspection is complete.

HINT:

When the system returns to normal, the warning message "Cruise Control Malfunction Visit Your Dealer" displayed on the multi-information display will be cleared.
