Toyota Camry (XV70): Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE COOLER DRYER

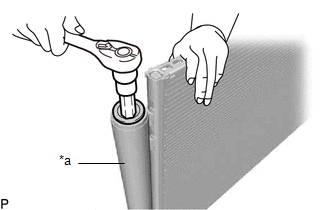

| (a) Using a 14 mm straight hexagon, remove the cap from the modulator. |
|

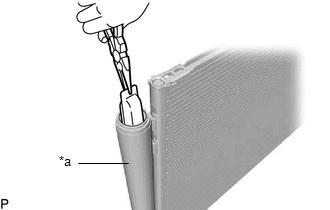

| (b) Using pliers, remove the cooler dryer from the modulator. |
|
