Toyota Camry (XV70): Reassembly

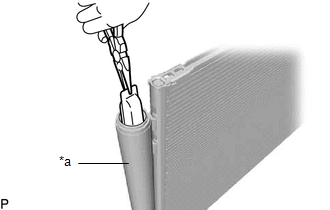

(a) Using pliers, install a new cooler dryer to the modulator.

(b) Sufficiently apply compressor oil to 3 O-rings and the fitting surfaces of a new cap.

Compressor Oil:

ND-OIL 12 or equivalent

NOTICE:

Keep the O-rings and O-ring fitting surfaces free from dirt or foreign matter.

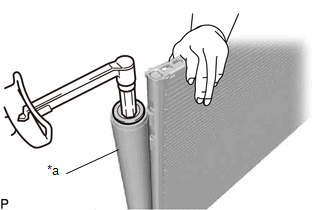

(c) Using a 14 mm straight hexagon, install the cap to the modulator.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}
