FAIL-SAFE CHART

FAIL-SAFE FUNCTION

(a) When a malfunction occurs in the tire pressure warning system, the tire pressure warning light illuminates after blinking for 1 minute to inform the driver of the system failure.

(b) As a result of this, tire pressure monitoring is disabled and a DTC is stored in the tire pressure warning ECU and receiver.

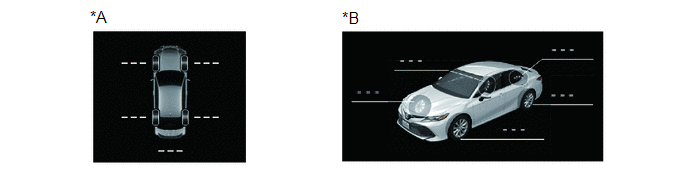

(c) w/ Tire Inflation Display Function:

When there is a system malfunction, the output display according to the tire position turns off.

HINT:

Spare tire is only displayed on vehicles with full size spare tire.

*A

for 4.2 Inch Display

*B

for 7 Inch Display
