1. INSPECT LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY

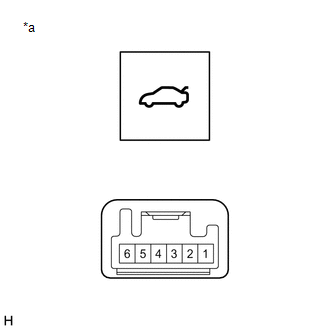

| (a) Check the switch. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the luggage compartment door opening switch assembly. |
|
(b) Check the switch illumination.
(1) Apply battery voltage to the switch connector and check that the luggage compartment door opening switch assembly illuminates.
OK:
|
Battery Connection | Specified Condition |
|---|---|
|
Battery positive (+) → Terminal 6 Battery negative (-) → Terminal 1 |
Illumination illuminates |
If the result is not as specified, replace the luggage compartment door opening switch assembly.
