Toyota Camry (XV70): Inspection

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Lighting (int) / Front Door Courtesy Switch / Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

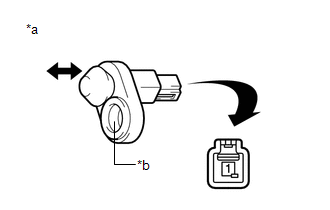

Component without harness connected

(Front Door Courtesy Light Switch Assembly)

Switch Body

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 - Switch body	Not pushed (ON)	Below 1 ?
1 - Switch body	Pushed (OFF)	10 k? or higher

If the result is not as specified, replace the front door courtesy light switch assembly.
