INSTALLATION
PROCEDURE
1. INSTALL STOP LIGHT SWITCH ASSEMBLY

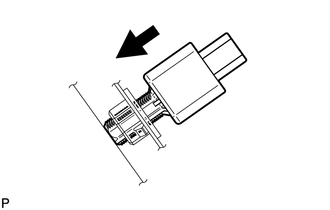

| (a) Insert the stop light switch assembly until the threaded sleeve hits the pedal. NOTICE: When inserting the stop light switch assembly, support the pedal from behind so that the pedal is not pushed in. |
|
| (b) Turn the stop light switch assembly 1/4 clockwise to install it. Torque: 1.5 N |
