Toyota Camry (XV70): P/W Master Switch Communication Stop (B1206)

Toyota Camry Repair Manual XV70 (2018-2024) / Power Source, Network / Networking / Lin Communication System / P/W Master Switch Communication Stop (B1206)

DESCRIPTION

This DTC is stored when LIN communication between the multiplex network master switch assembly and main body ECU (multiplex network body ECU) stops for 10 seconds or more.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1206

P/W Master Switch Communication Stop

No communication between multiplex network master switch assembly and main body ECU (multiplex network body ECU) for 10 seconds or more.
  • Main body ECU (multiplex network body ECU)
  • Instrument panel junction block assembly
  • Multiplex network master switch assembly
  • Wire harness or connector
  • ECU-B NO. 2 fuse

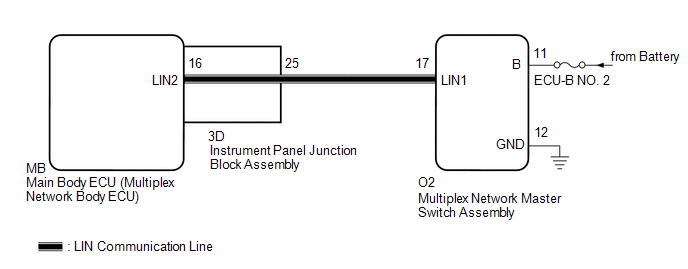

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Inspect the fuses for circuits related to this system before performing the following procedure.
  • Before replacing the main body ECU (multiplex network body ECU), refer to Registration.*

    Click here

  • *: w/ Smart Key System

PROCEDURE

1.

INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

(a) Remove the instrument panel junction block assembly.

Click here

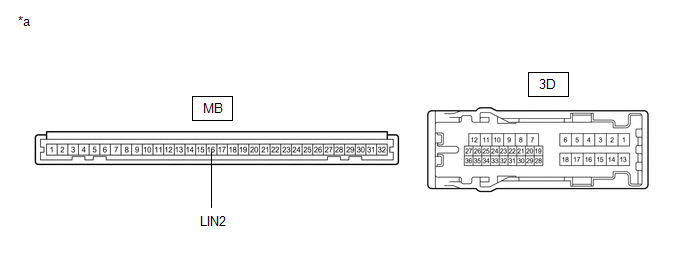

*a

Component without harness connected

(Instrument Panel Junction Block Assembly)

-

-

(b) Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.

(c) Measure the resistance according to the value(s) in the table below.

HINT:

This inspection is to check the LIN communication line in the instrument panel junction block assembly that connects the wire harness to the built-in main body ECU (multiplex network body ECU).

Standard Resistance:

Tester Connection

Condition

Specified Condition

3D-25 - MB-16 (LIN2)

Always

Below 1 Ω
NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK

2.

CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY)

(a) Disconnect the O2 multiplex network master switch assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

NOTICE:

Make sure that each ECU is in sleep mode before performing the inspection. To enter sleep mode, turn the ignition switch from ON to off and wait for 180 seconds or more without operating any switches.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3D-25 - O2-17 (LIN1)

Ignition switch off

Below 1 Ω

O2-17 (LIN1) or 3D-25 - Body ground

Ignition switch off

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

3.

CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - BATTERY, BODY GROUND)

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

O2-11 (B) - O2-12 (GND)

Always

11 to 14 V

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O2-12 (GND) - Body ground

Always

Below 1 Ω
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

4.

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

(a) Replace the multiplex network master switch assembly.

Click here

NEXT

5.

CHECK FOR DTC

(a) Clear the DTCs.

Body Electrical > Main Body > Clear DTCs

(b) Recheck for DTCs.

Body Electrical > Main Body > Trouble Codes

OK:

DTC B1206 is not output.

OK

END (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WAS DEFECTIVE)
NG

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
