Toyota Camry (XV70): Parts Location
Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Wiper / Washer / Wiper And Washer System / Parts Location
PARTS LOCATION

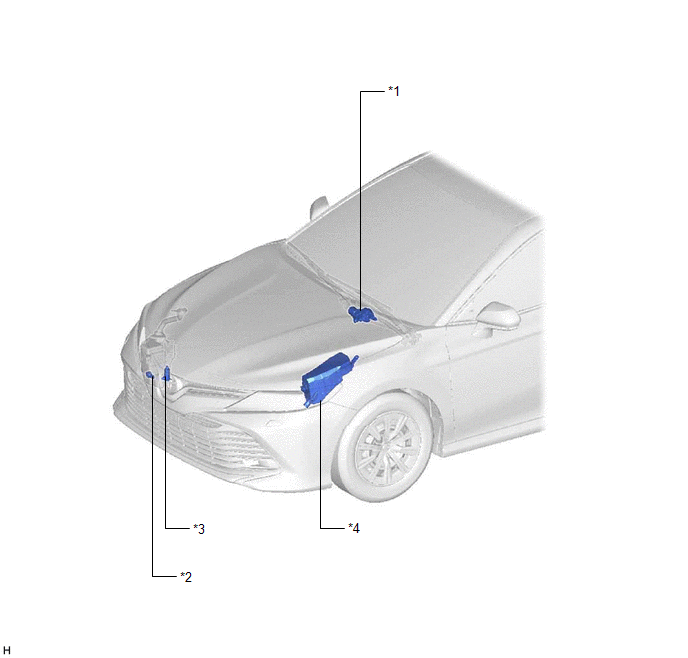

ILLUSTRATION
|
*1 | WINDSHIELD WIPER MOTOR ASSEMBLY |
*2 | LEVEL WARNING SWITCH ASSEMBLY |
|
*3 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
*4 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - WIPER FUSE - WIPER RELAY - WASHER RELAY |

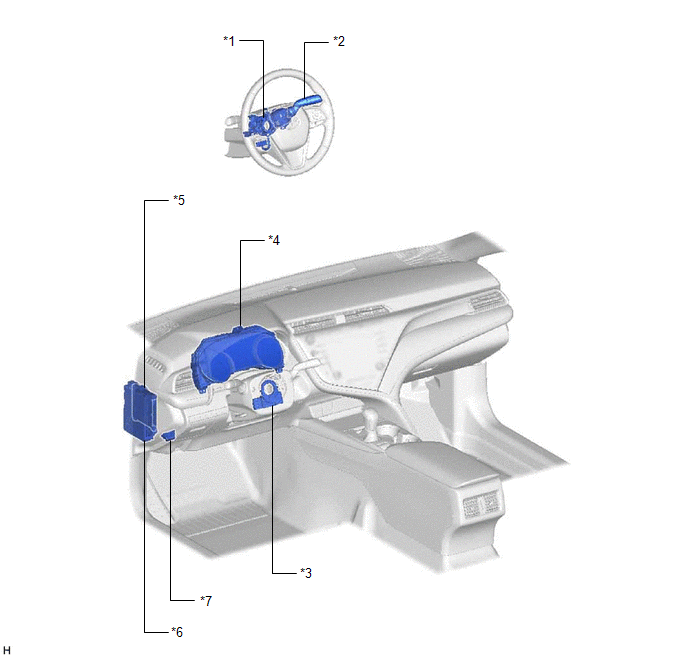

ILLUSTRATION
|
*1 | STEERING WHEEL SWITCH HOUSING |
*2 | WINDSHIELD WIPER SWITCH ASSEMBLY |
|
*3 | STEERING SENSOR |
*4 | COMBINATION METER ASSEMBLY |
|
*5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - WASHER FUSE |
|
*7 | DLC3 |
- | - |
