SYSTEM DIAGRAM

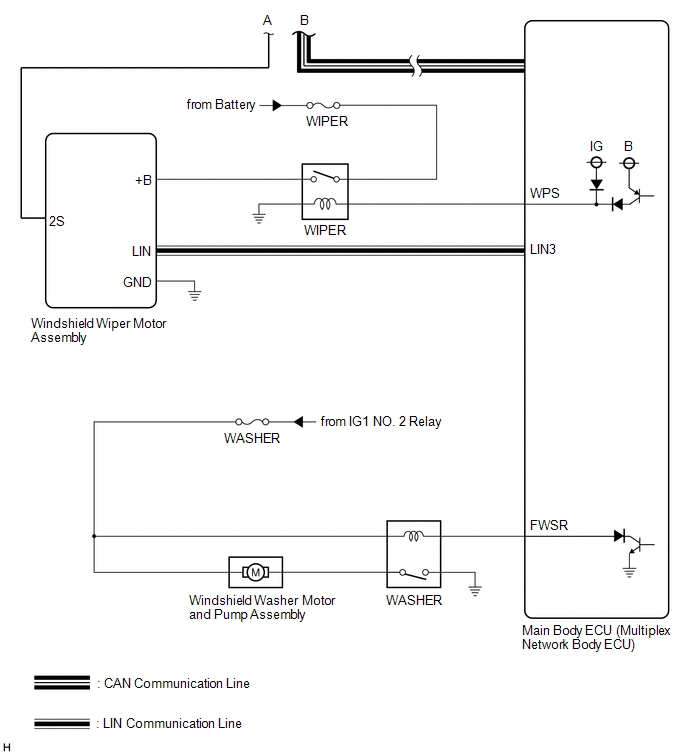

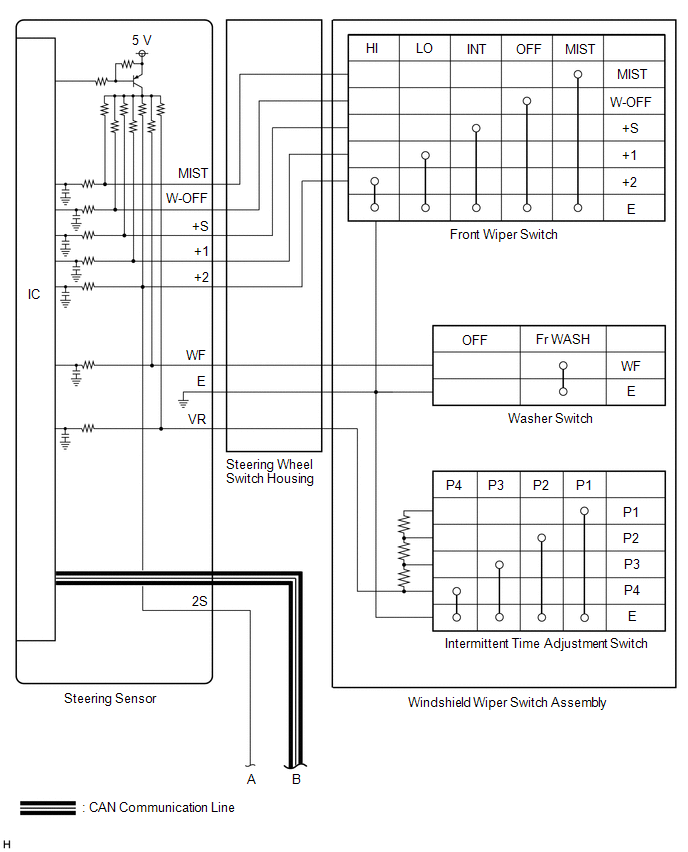

FRONT WIPER AND WASHER SYSTEM
WASHER FLUID LEVEL WARNING SYSTEM
READ NEXT:
System Description
SYSTEM DESCRIPTION FRONT WIPER AND WASHER CONTROL FUNCTION
Control/Function Description
Wiper speed regulation Maintains the default speed of the wipers even when the supply voltag
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT
HINT:
Use the following procedure to troubleshoot the wiper and washer system.
*: Use the Techstream.
PROCEDURE
1. VEHICLE BROUGHT TO WORKS
Check For Intermittent Problems
CHECK FOR INTERMITTENT PROBLEMS
NOTICE:
If the vehicle or vehicle controls are operated (for example, during initial inspection when the vehicle is brought in for repair) before operation his
