Toyota Camry (XV70): Positioning a floor jack
Toyota Camry Owner's Manual XV70 (2017-2024) / Maintenance and care / Do-it-yourself maintenance / Positioning a floor jack
When using a floor jack, follow the instructions in the manual provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.

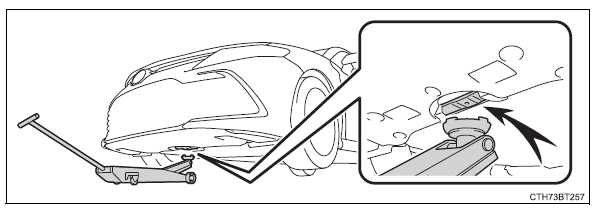

◆ Front
◆ Rear
2WD models
AWD models
