Toyota Camry (XV70): Reassembly

Toyota Camry Repair Manual XV70 (2018-2024) / Drivetrain / Gf1a (transfer / 4wd / Awd) / Transfer Assembly / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

Steps 9 to 16 are temporary reassembly procedures for adjustment purposes.

PROCEDURE

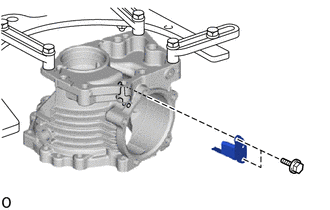

1. INSTALL BREATHER OIL DEFLECTOR

(a) Install a new breather oil deflector to the transfer case with the 2 bolts.

Torque:

6.5 N
