Toyota Camry (XV70): Reassembly

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Door / Hatch / Rear Door / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY

Click here

2. INSTALL REAR DOOR FRONT OUTSIDE SEAL

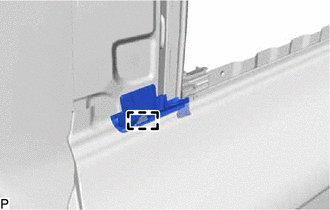

(a) Engage the guide to install the rear door front outside seal.

3. INSTALL REAR DOOR FRONT WINDOW FRAME MOULDING

Click here

4. INSTALL DOOR WINDOW FRAME MOULDING CLIP

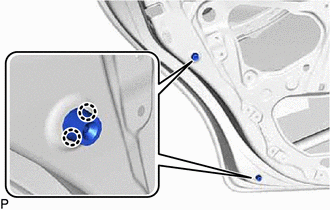

(a) Engage the 2 claws to install the door window frame moulding clip.

Install in this Direction

5. INSTALL REAR DOOR BELT MOULDING ASSEMBLY

Click here

6. INSTALL REAR DOOR NO. 2 WEATHERSTRIP

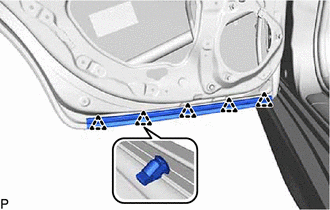

(a) Engage the 5 clips to install the rear door No. 2 weatherstrip.

7. INSTALL REAR DOOR PANEL CUSHION

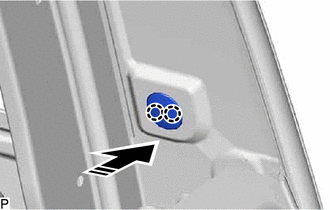

(a) Engage the 4 claws to install 2 new rear door panel cushions.

8. INSTALL REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

(a) Apply MP grease to the sliding parts of the rear door outside handle frame sub-assembly.

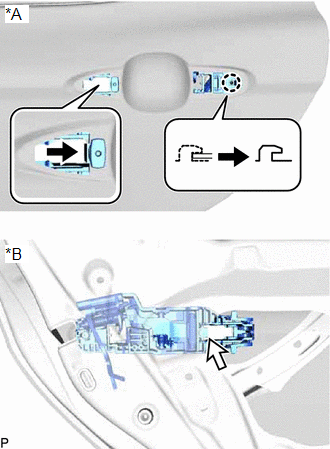

(b) Engage the claw as shown in the illustration.

*A

Outside

*B

Inside

(c) Using a T30 "TORX" socket wrench, install the rear door outside handle frame sub-assembly with the screw.

Torque:

4.0 N
