Toyota Camry (XV70): Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL FRONT BUMPER SIDE RETAINER LH

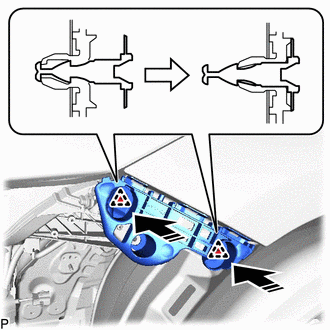

(a) Engage the 2 clips as shown in the illustration.

Install in this Direction

(b) Install the front bumper side retainer LH with the bolt.

Torque:

7.0 N
